Packaged Wastewater Treatment Equipment System Sewage Water Treatment Plant for Poultry Farm Fish Farming Plastic Recycle Slaughterhouse Dairy Food Processing

Product Description

Product Description Product Profile

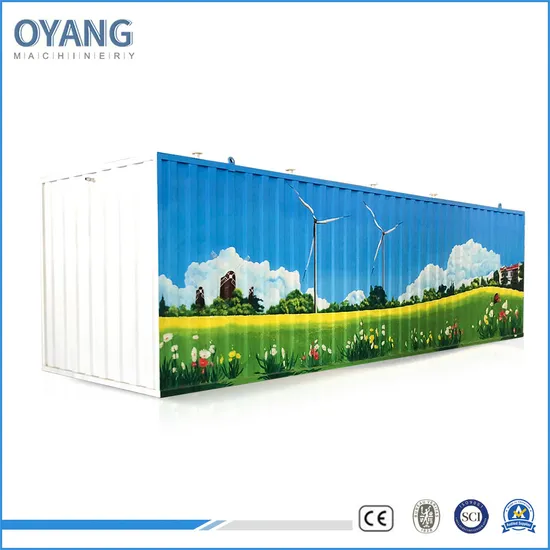

The integrated sewage treatment plant can effectively remove BOD5, COD and NH3-N. It has the characteristics of stable and reliable technical performance, good treatment effect, low investment, automatic operation, and convenient maintenance and operation. At the same time, MBR, MBBR, AO, AAO and other processes can be provided.

Working Principle Replacing the end secondary sedimentation tank of traditional biological treatment technology with membrane modules, maintaining a high concentration of activated sludge in the bioreactor, increasing the organic load of biological treatment, thereby reducing the footprint of sewage treatment facilities, and reducing residual sewage by maintaining low sludge load amount of mud. It mainly uses activated sludge and macromolecular organic matter in the retention tank of the membrane separation equipment immersed in the aerobic biological tank. The concentration of activated sludge in the membrane bioreactor system can be increased to 8000~10,000mg/L, or even higher; the sludge age (SRT) can be extended to more than 30 days.
APPLICATIONS
Product Parameters

Model		WSZ1	WSZ2	WSZ3	WSZ5	WSZ7	WSZ10	WSZ15	WSZ20	WSZ25	WSZ30	WSZ40	WSZ50
Capacity		1	2	3	5	7	10	15	20	25	30	40	50
(m3/h)
Number		1	1	1	1	1	1	2	2	2	3	4	5
Fan	air volume	0.31	0.59	0.67	1.02	1.72	2.5	4.11	4.11	2.5x2	2.5x2	4.11x2	4.11x3
	wind pressure	5000	5000	5000	5000	5000	5000	5000	5000	5000	5000	5000	5000
	power	0.55	0.75	1.5	1.5	2.2	3.7	5.5	5.5	3.7x2	3.7x2	5.5x2	5.5x3
The water pump	traffic	1	2	3	5	7	10	15	20	25	30	40	50
	lift	8	8	8	8	8	8	8	8	8	8	8	8
	power	0.55	0.55	0.55	0.75	0.75	0.75	0.75	1.5	1.5	1.5	3.7	5.5
Area		6	10	14	19	28	39	58	75	93	113	143	168

Our Project

Certifications
Company Profile Qingdao Oyang Machinery Equipment Co.,Ltd is located in Qingdao City,Shandong Province.
Our workshop area is 20,000 square meters and rich experience in sewage treatment.We have long term relationships with makeshift hospital,Sinopec,Railway group,State grid,CRCC,and so on.
The company's main products: integrated sewage treatment equipment, domestic sewage treatment equipment, buried sewage treatment equipment, air flotation machine, industrial sewage treatment equipment, belt filter press, sludge dewatering machine, vacuum filter, rural sewage treatment equipment , Hospital sewage treatment equipment, slaughter sewage treatment equipment, coal mine sewage treatment equipment and other environmental protection equipment.
Products are widely used in domestic industrial and mining enterprises, living quarters, urban and rural areas, food, petrochemical, papermaking, breeding and slaughtering, leather, textile, printing and dyeing, hospitals, hotels and other fields.
Production Site
Packing

FAQ 1: Are you trading company or manufacturer?
We are manufacturer, specializes in sewage treatment over 20 years.
2.This is my first time to import, i do not know the process, how should i do?Don't worry about that, we'll help you deal with the whole process.
We have different country shipping agent, if you are the first time to import, they will be professional and give you the best price and deal with everything of transport. They will supply custom clearance and transportation service from the destination port to your stock.
3.Could you accept the customized ?Of course, we have professional engineer to design and provide customized service.
4: Do you provide OEM service?Yes,we provide OEM and ODM service.
5: Do you offer after-sales service?
Yes,please contact online sales manager for more information.

---
