9060 CO2 Laser Engraving Machine Acrylic Wood MDF Leather Cloth Cutting

Product Description

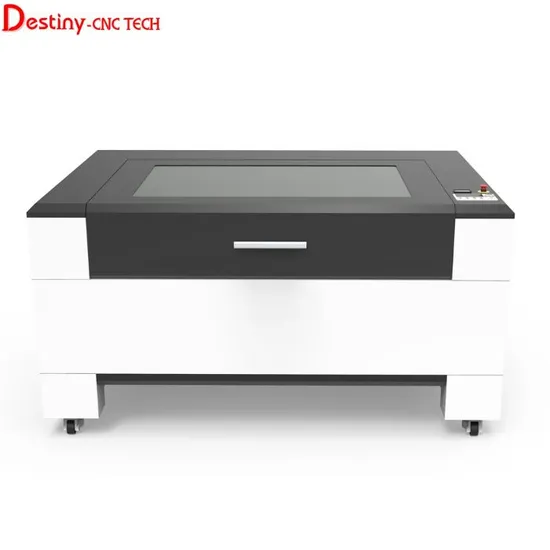

DT-9060E CO2 Laser engraving & cutting machine
Machine Features
1.Multifunctional acrylic wood mdf fabric nonmetallic laser cutting engraving machine is a very popular type machine, this type machine can cut and engrave most nonmetal materials, such as wood acrylic MDF plastic leather plywood etc.2.Many of our customers order this type machine in batches, so we have stock of this type, and can usually ship within seven days.
3.Machine power can be selected from 60w to 150w, that depends on your working purpose. 60-100W can do both engraving and cutting. Higher laser power like 130W and above mainly do cutting work.
4. There are multi sizes for your choice:60x40cm, 90x60cm, 130x90cm, 160x100cm,180X100cm.
5.Some optional functions can be selected, like red dot pointer, motorized up-down table, rotary, auto focus, WIFI provide more convenience and applicable range.- safety lock: Machine works with door closed, and stops working if door open.- WIFI: You can send files to machine through WIFI.- red dot pointer: The red dot previews where you are going to fire the laser.- auto focus: It adjusts the focal lengh automatically before engraving or cutting.- motorized up-down Z: Machine table can be lowered and lifted to different height.- rotary: It assists processing of cylindrical items.
Technical Parameters

Model	DT-9060E
Laser power	60w, 80w, 100w, 130w, 150w
Laser type	CO2 glass laser tube, wavelength 10.6μm, water-cooled
Engraving speed	0-50000mm/min
Cutting speed	0-30000mm/min
Repeating location	≤±0.01
Transmission type	Belt transmission
Driving system	Stepper motor
Machine table	Blade table (alternative: honeycomb table)
Graphic format supported	*.plt, *.dst, *.dxf, *.bmp, *.dwg, *.ai, *.las, supporting AutoCAD and CorelDraw
Software supported	CoreDraw,Auto CAD
Control system	POWERCUT 4311, RUIDA RDC6445S , AWC7824G etc. Control system
Laser power	0~100% adjustable
Minimum letter size	Chinese 2.0x2.0mm, English 1.0x1.0mm
Working voltage	Single phase 220V/50Hz (Optional: 220V/60Hz)
Working condition	Temperature 0~45 Celsius; Humidity 5%~95% no condensation

CO2 Laser working capacity
Machine configuation details
Samples
Warranty and after-sales service
1. Two years guarantee for the whole laser machine, the CO2 laser tube warranty is 10-18 months. If the machine is with any problem, our technician will help to solve online first time. If the laser tube is with problems , we need you to take one video with the tube working situation, brand label ,tube double metal sides, mirror inside of tube etc. details. After confirming by RECI tube company , they will free change new one for you and send to you by express.
2. We have got CE&FDA certificate, all the machines are produced according to standard to keep the quality.
3. We have excellent English technician team , they are available at 24 hours online .No time difference limitation . Can supply the solution for any problems. In addition ,appoint technician to your country is available if you need .
4. There are detail machine operation manual sent together with the machine and pdf. file .

---
