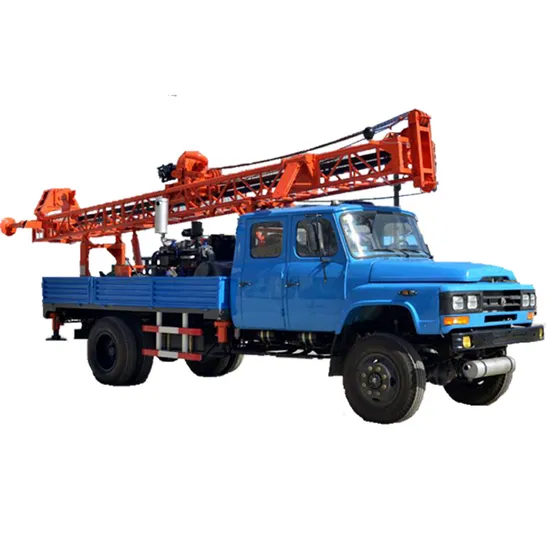

Gl-Iia Truck Mounted Drilling Rig Borehole Well Drill/Drilling Rig

US$78,900.00 1 Piece (MOQ)

Basic Info.

Model NO.
GL-IIA
Controlling Mode
Artificial
Number of Shaft
2
Hole Diameter
151-200mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Item
Gl-Iia Truck Mounted Drill
Hole Diameter (mm)
90-1200
Hole Depth (M)
150
Run of Rod (M)
3
Rig Mass (Kg)
9100
Drilling Technology
Normaland Reverse Circulation for Both Mud and Air
Down-The-Hole Hammers
Middle-High-Pressure Air
Drill Head Lifting Force(Kn)
94.55
Feed Thrust (Kn)
0-12
Main Hoist Lifting Force (Kn)
18.54
Transport Package
Standard Export Packing
Specification
SGS
Trademark
GLORYTEK
Origin
China
Production Capacity
50 Sets Per Month

Product Description

GL-IIA Truck Mounted Drilling Rig Borehole Well Drilling Equipment
Main Application
Drilling wells for urban and rural life
Drilling wells for agricultural irrigation and industries
Drilling for geotechnical survey
Drilling construction engineering holes
Drilling geothermal pump wells
Item GL-IIA Truck Mounted Drill
Hole Diameter (mm): 90 - 1200
Hole Depth (m): 150
Run of Rod (m): 3
Drill Rod Diameter (mm): 60 \ 73 \ 89 \ 95 \ 133
Drill Head Inside Diameter (mm): 35 \ 60 \ 81 \ 120
Rig Mass (kg): 9100
Drilling Technology : Normaland Reverse Circulation for Both Mud and Air
Down-The-Hole Hammers: Middle-High-Pressure Air
Drill Head Lifting Speed (m/s): 0.25 0.15
Drill Head Lifting Force(kN): 94.55
Feed Thrust (kN): 0 - 12
Drill Head Spin Speed (r/min) : A(Forward:13-22-48, Reverse:10-17-36)
B(Forward: 48-84-184, Reverse: 37-65-142)
Main Hoist Lifting Force (kN): 18.54
Mud Pump: BW450
Flow (L/min): 450 350
Pressure: (Mpa) 1.2 2.0
Power Unit: Diesel Engine
Power(Kw): 42
Supporting Form Hydraulic Unit
Mask Up-Down: Hydraulic Unit
Chassis: DONG FENG EQ1093(four-wheel drive)
Dimensions(mm): (L-W-H) Working Conditions: 7900*2370*7200
Transport status: 8450*2370*3400

Glorytek Industry (Beijing)Co.,Ltd., located inBeijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients.

Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
Packing and Transport
Packing: Seaworthy Packing
Delivery: about 30 days after your down payment.
Company Profile
Glorytek Industry (Beijing)Co.,Ltd., located in Beijing,China, is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for decades. We are supported and assisted by a highly experienced team of designers and engineers that enable us to complete all the assigned projects successfully as per the specified requirement from our clients. Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.Exhibition
Certifications
Customer Photos
After-sale Warranty
(1)Within the period of the first year after delivery, the main parts are guaranteed to be supplied free of charge once the problem caused by the quality issue.
(2) Service at working site: If need, our technical engineer can be dispatched to the working site for technical service, but the expense of ticket, accommodation, diet, service charge shall be on buyer's account.
(3)Timely after-sale assistance shall be provided all the time.
FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH hammer and bit. Moreover, we have drilling equipments like mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver within 30days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
