3200mm Plate Bending Machine CNC Press Brake Bending Machine

Product Description

Product Description

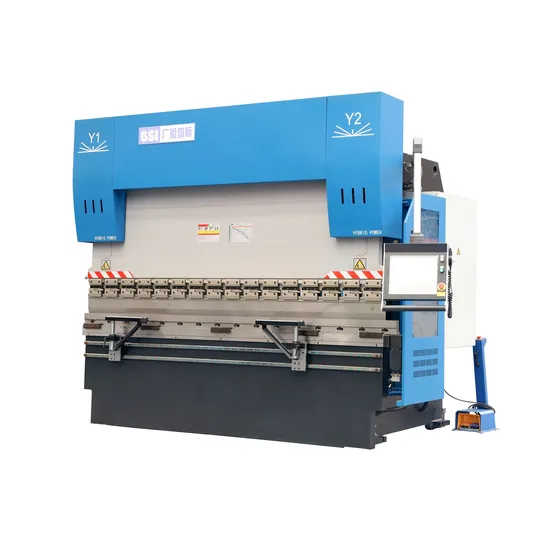

WE250/3200 Hybrid CNC Press Brake Introducing the CNC Bending Machine with GSI GT15 Control System by Guangdong GSI Elevator Electromechanical Equipment Ltd. This versatile and efficient bending machine offers precise and reliable sheet metal bending, folding, and plate bending capabilities. With its advanced CNC technology and customizable controls, it provides innovative solutions for precision metal fabrication and efficient sheet metal processing. Experience high-quality and accurate bending operations with this durable and robust machine.
Machine Outlook
Key Features:
Oil-electric hybrid technology: Achieve superior efficiency, energy savings, environmental friendliness, and reduced noise levels.
On-demand oil supply: Minimize overflow, effectively reduce oil temperature, and extend the service life of the hydraulic system and components.
Electro-hydraulic servo valve system: Full closed-loop control slider synchronization with an impressive accuracy of 0.01mm.
All steel plate welding structure: Ensures durability and stability throughout the machine.
CNC system control: Hydraulic deflection compensation device for precise and reliable operation.
High-performance servo motor and ball screw: Equipped in the rear stop for enhanced performance.
Wedge type deflection compensation mechanism: Equipped in the upper slider for improved precision.
Multiple die options: Choose between the square multi-V die or the same core double V die to suit your specific needs.
Detailed Image
Control System (Standard)
CNC System (Optional)
Main Technical Parameters of WE Series Hybrid CNC Bending Machine

No.	Model	Nominal Pressure (kN)	Table Length (mm)	Distance Between Columns (mm)	Throat Depth (mm)	Slide Strok(mm)	Opening Height (mm)	Main Motor Power(kw)	Back Gauge Operating Range (mm	Speed			Overall Dimension			Weight (kg)
										Approach (mm/s)	Working (mm/s)	Return (mm/s)	L(mm)	W(mm)	H(mm)
1	WE40/1500	400	1500	1160	320	160	410	5.5	500	180	10	150	230	1350	2500	4000
2	WE50/2000	500	2000	1500	320	160	410	5.5	500	180	10	150	2600	1380	2550	4500
3	WE63/2500	630	2500	2000	320	160	410	5.5	500	180	10	150	3100	1500	2600	5500
4	WE80/2500	800	2500	2000	400	200	470	7.5	500	180	10	140	3100	1650	2650	6000
5	WE100/2500	1000	2500	2000	400	250	525	7.5	500	160	10	130	3100	1650	2650	7200
6	WE100/3200	1000	3200	2700	400	250	525	7.5	500	160	10	130	3800	1650	2750	8000
7	WE100/4000	1000	4000	3500	400	250	525	7.5	500	160	10	130	4600	1650	2800	9000
8	WE125/2500	1250	2500	2000	400	250	525	11	500	160	10	130	3100	1700	2700	8000
9	WE125/3200	1250	3200	2700	400	250	525	11	500	160	10	130	3800	1700	2750	9000
10	WE125/4000	1250	4000	3500	400	250	525	11	500	160	10	130	4600	1700	2800	10000
11	WE125/5000	1250	5000	4100	400	250	525	11	500	160	10	130	5600	1700	2900	12000
12	WE160/2500	1600	2500	2000	400	250	525	15	500	160	10	130	3100	1800	2750	8500
13	WE160/3200	1600	3200	2700	400	250	525	15	500	160	10	130	3800	1800	2800	9500
14	WE160/4000	1600	4000	3500	400	250	525	15	500	160	10	130	4600	1800	2850	11500
15	WE160/5000	1600	5000	4100	400	250	525	15	500	160	10	130	5600	1800	3000	13000
16	WE160/6000	1600	6000	5100	400	250	525	15	500	160	10	130	6600	1800	3200	15500
17	WE200/3200	2000	3200	2700	400	250	550	18.5	500	160	10	120	3800	1800	2850	12000
18	WE200/4000	2000	4000	3300	400	250	550	18.5	500	160	10	120	A60	1800	2900	14000
19	WE200/5000	2000	5000	4100	400	250	550	18.5	500	160	10	120	5600	1800	3100	15500
20	WE200/6000	2000	6000	5100	400	250	550	18.5	500	160	10	120	6600	1800	3300	18000
21	WE250/3200	2500	3200	2700	400	250	550	18.5	500	150	8	110	3800	1900	2950	14500
22	WE250/4000	2500	4000	3300	400	250	550	18.5	500	150	8	110	4600	1900	3100	16000
23	WE250/5000	2500	5000	4100	400	250	550	18.5	500	150	8	110	5600	1900	3200	17500
24	WE250/6000	2500	6000	5100	400	250	550	18.5	500	150	8	110	6600	1900	3350	20000
25	WE320/3200	3200	3200	2700	400	300	600	22	500	150	8	110	3800	2100	3200	17500
26	WE320/4000	3200	4000	3300	400	300	600	22	500	150	8	110	4600	2100	3300	20000
27	WE320/5000	3200	5000	4100	400	300	600	22	500	150	8	110	5600	2100	3600	24500
28	WE320/6000	3200	6000	5100	400	300	600	22	500	150	8	110	6600	2100	3850	29000
29	WE400/3200	4000	3200	270	400	300	600	30	500	150	8	110	3800	2500	3600	23000
30	WE400/4000	4000	4000	3200	400	300	600	30	500	150	8	110	4600	2500	3850	28000
31	WE400/5000	4000	5000	4000	400	300	600	30	500	150	8	110	5600	2500	4300	32000
32	WE400/6000	4000	6000	5000	400	300	600	30	500	150	8	110	6600	2500	5000	38000
33	WE500/4000	5000	4000	3200	500	300	600	37	500	130	8	100	4600	2600	4200	32000
34	WE500/5000	5000	5000	4000	500	300	600	37	500	130	8	100	5600	2600	4800	40000
35	WE500/6000	5000	6000	5000	500	300	600	37	500	130	8	100	6600	2600	5500	50000

View more products , pls click here
https://gsi--tfm.en.made-in-china.com/product-list-1.html
Company Profile Guangdong GSI Elevator Electromechanical Equipment Ltd Since 1983, Guangdong GSI Elevator Electromechanical Equipment Ltd has been at the forefront of introducing international technology and manufacturing high-quality hydraulic plate shears, hydraulic press brakes, and grooving machines. As one of the earliest enterprises in China to produce these hydraulic machines, we have continuously developed, improved, and innovated our products over the past 40 years.
With over 100 patented technologies, our products have reached an exceptional level of technical excellence. We take pride in the continuous improvement of our products, ensuring that they meet the highest standards of quality and performance.
Our hydraulic plate shears, hydraulic press brakes, and grooving machines have gained global recognition and are exported to various countries around the world. We are committed to providing reliable and efficient solutions for our customers' needs.
Workshop View Our Equipment Our Team
Qualifications and Honors Technology Research and Development
Shipment and Delivery
FAQ About Us Guangdong GSI Elevator Electromechanical Equipment Ltd is a leading manufacturer and supplier of high-quality press brake, shearing machine, grooving machine, and elevator. With nearly 40 years of manufacturing experience, we are committed to providing innovative and reliable solutions to meet our customers' needs.
Product Description Our press brake is designed for precision bending of various materials. It is equipped with advanced technology and features a sturdy construction for long-lasting performance. The shearing machine is perfect for cutting different types of materials with high accuracy and efficiency. Our grooving machine is ideal for creating grooves in metal sheets, ensuring precise and clean results. Additionally, we offer a wide range of elevators that are designed to provide safe and reliable vertical transportation.
Accurate Quotation To receive an accurate quotation, please provide us with the details of the material and the maximum length you require. You can also send us the workpiece drawing, and our experienced team will select the most suitable machine and provide you with a competitive quote.
Payment Terms We accept T/T as the payment method. A 30% initial payment is required when placing an order, and the remaining 70% balance should be paid before shipment.
Minimum Order Quantity Our minimum order quantity is 1 set. However, for some low-cost machines, the minimum order quantity may be more than 1 set.
Customization We offer customized machines and tools to meet your specific requirements. Our experienced engineers will design and manufacture the equipment according to your needs, ensuring optimal performance and efficiency.
Quality Guarantee At GSI, we prioritize quality and have obtained ISO9001:2015 certification for our strict quality management system. With over 100 patented technologies, we ensure that our products meet the highest standards. Our machines have been exported worldwide, gaining recognition for their reliability and durability.
Visit Us Our factory is located in Zhongshan City, Guangdong Province, China. You can easily reach us by taking a train to Zhongshan railway station or Nanlang railway station. We would be delighted to arrange transportation from the railway station to our factory. We warmly welcome you to visit us and see our manufacturing facilities firsthand.

---
