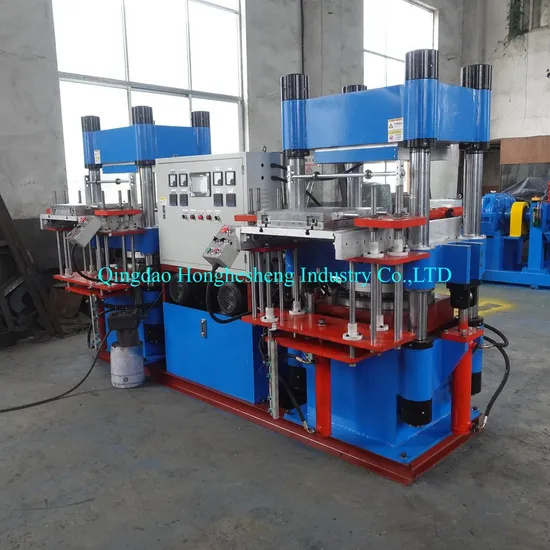

Rubber Making Machine Press Two Station Automatic Feeding Silicone with Vacuum Cylinder

Product Description

Parameters/version	XLB350*350*2	XLB400*400*2	XLB500*500*2	XLB600*600*2/4	XLB750*850*2	XLB1000*1000*2
Mould closing force	0.25MN	0.5MN	0.8MN	1.0MN	1.6MN	2.5MN
Hot plate spacing	125mm	125mm	125mm	125mm	125mm	200mm
Hot plate layer	2	2	2	2/4	2	2
Plunger stroke	250mm	250mm	250mm	250/500mm	250mm	400mm
Heating way	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/Stream	Electricity/stream
Main motor power	2.2kw	2.2kw	2.2kw	2.2kw	3kw	5.5kw
The thermal power	2.4kw/board	3kw/board	3kw	7.5kw/board	9kw/board	10.8kw/board
Size(L*W*H)mm	1450*400*1350	1600*400*1440	1450*690*1818	1880*780*1660	2100*1010*1900	2400*960*2500
Weight(kg)	1200	1500	1700	2500/3100	3560/4300	8300

if you make nonstandard machine, kindly confirm me below ,so that we can make precise quotation.

-1 what is your rubber plate size ? 500*500mm?1000*1000mm?

-2 pressure? 25T ,50T,80T.100T?

-3 How many layers? 2 plates,1 layer?3 plates ,2 layers?.........

-4 distance between hot plates? 125mm? or other?

-5 what is the plunger stroke? 250mm? 500mm?



-6 Leave your cellphong? Skype? whatsApp?viber? so that we can talk efficiently.
It is the main moulding equipments for various of rubber molding products and non-molding products,with simple structure,high pressure,wide applicability,and high efficiency,the equipment is also suitable for molding to thermosetting plastic,bubble,resins,bakelite,sheet metal,building materials and other molding products.
Applicable products:
O-ring, keyboard, roller, medical medicine plug, shockproof products, finished black rubber products, daily necessities, gaskets, conductive products,electronic products and other products with beautiful and precise appearance requirements.

1.The machine adopts the automatic control . The working program can be set in the cabinet and machine will work according to this program
2.Most spare parts for hydraulic system are imported from Taiwan
3.Machine body casting is made of FCD 50 ductile cast iron ,which is processed by high tensile strength after aging passivation
4.The machine pillars/ columns are made of medium carbon steel , and its hardness can reach HRC55-58
5.The cartridge heater adopts three stages winding, nichrome wire , non-rusty
6.Oil seal are from Japanese NOK and Sakagmi Brand , it is wear-resisitant ,durable and oil tight
7.Main electrical elements are from China famous Brand ,which can stabilize machine performance
Company information
Qingdao Honghesheng Industry Co., LTD, manufacturer of rubber machine,which is located in the west coast of Qingdao economic district, with 10 million registered capital. The company covers an area of 5000 square meters with 26 professional and technical staffs and 5 senior engineers. The technical staffs have working experience in large tire enterprise who can design more suitable equipment for the customer as for tire production process. Also they can provide new factory site planning and other services.
The company's main products are: Rubber kneader, rubber mixing mill, rubber sheet cooling machine, inner tube production line,tyre production line, vulcanizing press, waste tyre recycling plant… Pre-Sales Service After-Sales Service
* Inquiry and consulting support. * Train how to install and use.
* Communicate and drawing design. * Overseas Service.
* Test machine before delivery. * Video Call Support Online
1. Q: How does your factory control quality?
A: Quality is priority. Quality Department will make a strick inspection before the machines leave the factory.

2. Q: Are the techncal parameter is fixed?
A: Basically, each model is corresponding to a related machine. But we can design different type machine according to the client's requirement.

3. Q: How to send your enquiry? Kindly tell me the answer...
-1) What's pressure do you need?
-2) What's your product material,lengh,width,thickness...?

---
