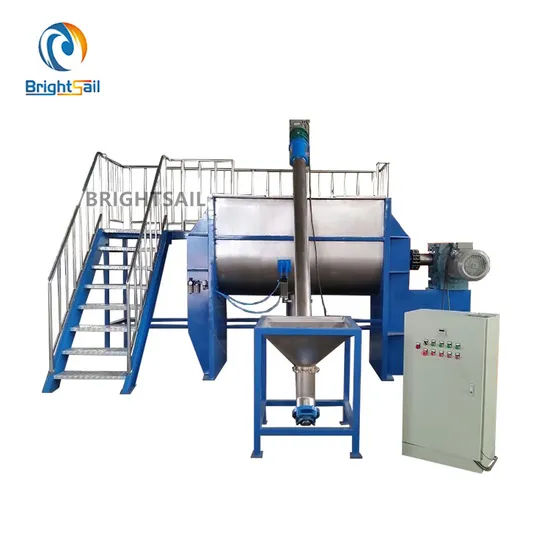

Horizontal Ribbon Mixing Machine Ribbon Mixer for Powders with CE

Product Description

Product Description The BSR ribbon mixer machine comprises of U-shape barrel, transmisstion parts and ribbon agitating blades which usually have doubleor triple layers with outside screw gathering material from side to center and inside screw transmitting the material from center to sides to form convection mix.
It is widely used in solid-solid (powder material) and solid-liquid(powder material-fluidity material) mixing in the fields of chemical industry, pharmacy, foodstuff industries.
Main features 1) Simple structure in horizontal U shape, easy in installation and maintenance.
2) Adopting advanced world famous brand components in pneumatic parts ,motor,electric parts ,bearings and operation parts.
3) hermetic seals are adopted on both sides of our ribbon mixer,
4) There is safeyty net on the cover, so that operator cannot reach out arms into the mixer, danger can be prevented.
5) Pneumatic valve is adopted to discharge material
Product Parameters

Model	Max work volume (L)	Rotate speed (rpm)	Overall size (L*W*H) (mm)	Weight (kg)
BSR-300	180	66	1550(L)*812(W)*1015(H)	780
BSR -500	300	66	1975(L)*1059(W)*1120(H)	955
BSR-1000	600	41	2340(L)*1380(W)*1455(H)	1400
BSR-2000	1200	33	2480(L)*1651(W)*1805(H)	2500
BSR-3000	1800	33	2945(L)*1896(W)*1980(H)	3300
BSR-4000	2400	29	3038(L)*1946(W)*2205(H)	3600
BSR-5000	3000	29	3932(L)*2010(W)*2035(H)	4620
BSR-6000	3600	26	3938(L)*1882(W)*2246(H)	5300
BSR-8000	4800	26	3986(L)*2160(W)*2516(H)	6800
BSR-10000	6000	19	4500(L)*2270(W)*2667(H)	8900

Detailed Photos Safety net: help to prevent accidents Spiral Ribbons: drive material to move to get mixed Discharge valve: pneumatic valve Platfrom (Optional): for easy feeding and cleaning Applications
Company Profile Our company-Brightsaill Machinery Co., Ltd is focus on the research of powder equipment, such as dryer, grinder, mixer, conveyor, sifter machines... etc. Our products can be applied in food, medicine, chemical and other industries and had won a good reputation.
After 15 year's development and accumulation, our company has been one of the most influential equipment manufacturers in the industry. And we wish to grow up and develop together with all new and old customers.
After Sales Service Packaging & Shipping *Usually small machine will be packed in the wooden case, and we can also pack it according to customers special request.*If machine is big, we will fix the machine inside container with steel wires and nails.Machine won't move inside the container.

---
