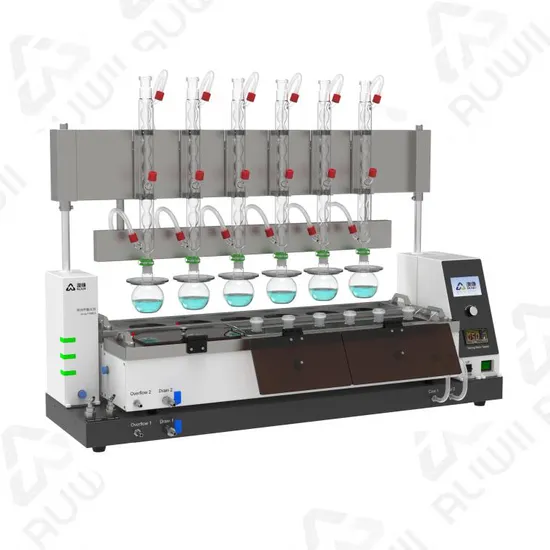

Soxhlet Extractor Percolator Boiler and Reflux Instrument

Product Description

Array water bath refluxer is an automated solution for water bath heating and reflux experiment. It can processes 6 samples at the same time, and the glass condenser can automatically rises and falls makes the sample replacement easier. It not only equips a heating water bath, but also a cold water bath, which can quickly cool the processed samples, rapid cooling to room temperature.
1.Compatible with reflux and Soxhlet extraction
AF6-SOX series products can oth easily complete the water bath heating reflux experiment, and Soxhlet extraction, which realizes two functions on one device.
2.Cooling and heating dual bath-comply with standards
AF6D,AF6DM equips a hot water bath heating from room temperature to 100ºC, and a 5ºC cooling water bath can cool the samples to room temperature within 50s.
3.Auto raise and fall-Easy for sample replacement
AF6 glass condenser can be controlled automatically rise and fall, easier sample replacement. Besides, AF6 can set it's working time. Once the time is over, the glass condenser will auto rise.
4.Middle liquid adding-Proper operating position
A liquid filling port is uniquely designed in the middle of glass condenser, proper height of the liquid filling port for adding reagents during the experiment.
5.Intermittent stirring-Easy to hydrolysis
6-position magnetic stirrer are equipped by AF6M and AF6DM , which can stir continuously or interrupt, make the sample hydrolysis easier.
6.Triple safety protection-more peace of mind using
Triple safety protection against dry heating. A high-decibel voice alarm will be triggered when the hot water bath is nearly empty. In extreme cases, if dry burning occurs, the equipment can be automatically powered off to ensure safe use.

Parameter	AF6D	AF6D-SOX	AF6DM	AF6DM-SOX
Soxhelt extraction compatible	N/A	YES	N/A	YES
Sample capacity	6 pcs	6 pcs	6 pcs	6 pcs
Bottle thread	Standard 24/29 thread	Standard 24/29 thread	Standard 24/29 thread	Standard 24/29 thread
Bottle volume	150,250ml	150,250ml	150,250ml	150,250ml
*Water bath	heating and cooling bath	heating and cooling bath	heating and cooling bath	heating and cooling bath
Temp. range of heating	Room temp.~100ºC	Room temp.~100ºC	Room temp.~100ºC	Room temp.~100ºC
Temp. stability of heating	±1ºC	±1ºC	±1ºC	±1ºC
*Sound alarm of hot water bath	YES	YES	YES	YES
Temp. range of cooling bath	5ºC-10ºC	5ºC-10ºC	5-10ºC	5-10ºC
*Automatic rise and fall	YES	YES	YES	YES
*Sample timing range	0~999min adjustable	0~999min adjustable	0~999min adjustable	0~999min adjustable
Magnetic stirring	--	--	YES	YES
Magnetic stirring speed	--	--	0-2000 round/min Adjustable	0-2000 round/min Adjustable
Chiller	T3B	T3B	T3B	T3B
Power supply	AC220V 50/60Hz	AC220V 50/60Hz	AC220V 50/60Hz	AC220V 50/60Hz
Input power	2500W	2500W	2500W	2500W
Overall dimension L*W*H (mm)	1200*350*930	1200*350*930	1200*350*930	1200*350*930

---
