Basic Info.
Automatic Grade
Automatic
Type
Hollow Block Making Machine,
Method
Hydraulic Pressure
Brick Size
400*100*200 mm, 200*100*60 mm
Brick Raw Material
Concrete
Key Selling Points
Easy to Operate
After Warranty Service
Video Technical Support
Core Components
PLC, Pressure Vessel, Motor
Machinery Test Report
Not Available
Processing
Brick Molding Machine
Dimension(L*W*H)
6430*2250*4760mm
Warranty of Core Components
1 Year
Local Service Location
Viet Nam, India, Kenya
Video Outgoing-Inspection
Not Available
Production Capacity
100 Set/Sets Per Year
Product Description
Product Description

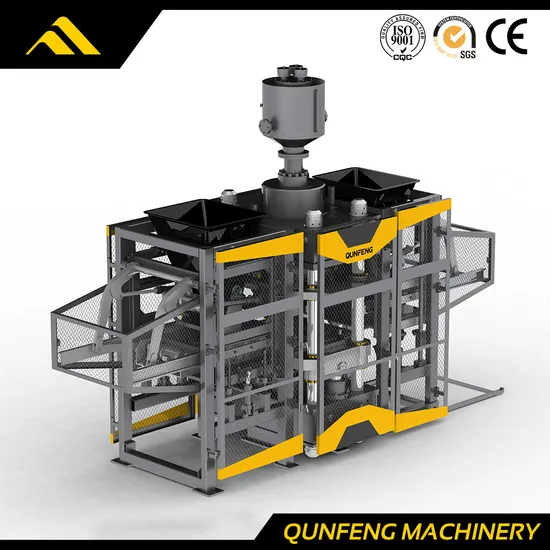

QP600 Automatic hydraulic pressing machine
The equipment adopts a concealed high-frequency micro-vibration concrete feeding system, which makes concrete feeding more efficient. It can produce high-strength standard bricks with surface layer, pavement bricks, imitation stone bricks, etc. It adopts brand PLC control to realize the integration and automation of machine, electricity, and liquid.
Main technical features
1. Automation: The equipment adopts brand PLC control, realizes automatic operation, and can remotely monitor and troubleshoot problems.2. Feeding material is more precise: the double-motor concrete feeding system controls the front and back feeding time of the same brick to achieve concrete feeding balance.3. Low noise, faster and more uniform cloth: Equipped with vibrating table micro-vibration system to vibrate cloth more evenly and lower noise.4. It can realize dry-process PC terrazzo.
| Main Pressure | 6000KN |
| Maximum pressure of main cylinder (MPa) | 21 |
| Static pressure molding | vibration and compression molding |
| Product height (mm) | 50-150 |
| Molding cycle (s) | 17-24 |
| Main equipment dimensions (mm) | 6510×2400×4800 |
| Power (kW) | 69 |
| weight (T) | 28 |
| Pallet size (mm) | PVC Pallet 950×950×(25-28) |
| Steel Pallet 950×950×12 |
| No. of molding blocks per mold (mm) | Solid Brick (238×115×48) 36pcs. |
| Paving brick(200×100×60) 24pcs. |
