Hardline Cable 500 with Messenger Seamless Aluminum Tube

Product Description

Product Description
Hardline Cable 500 with Messenger CATV Network Aluminum Tube 500 Trunk cable with Messengerr
Seamless aluminum tube as outer conductor
Patented technology
Over 20 years of experience
High quality PE outer jacket
Asphalt or flooding compound is available
One of key OEM /ODM trunk cable suppliers in China
ISO certfied factory
Conflict Minerals DeclarationProduct description :

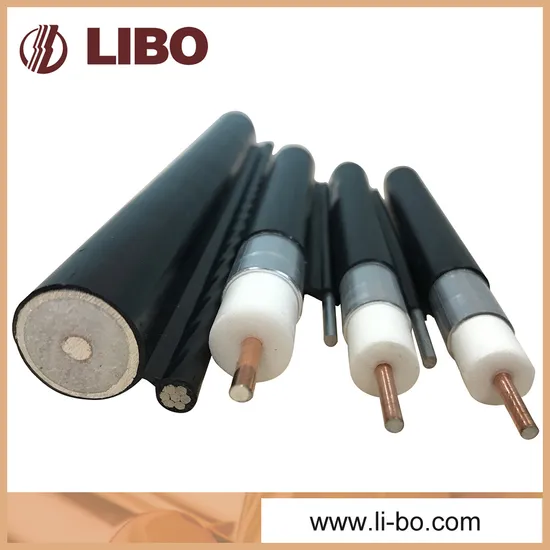

This is seamless aluminum tube trunk cableSolid aluminum tube swaged onto dielectric core, fully bonded copper clad center conductor, medium density PE jacket, "figure 8" integrated messenger.
Applications:
P3 500JCAM109 trunk cables is manufactured with a seamless conforming aluminum outer sheath, it has is used for main cable of CATV system, such as base station and equipment cabinets, it is a lower-cost alternative to the traditional, corrugated copper coaxial cables.
Shield:
Solid aluminum tube
Nominal outer conductor thickness: 0.024"(0.61mm)
Jacket:
Medium density PE
Nominal jacket diameter:0.560"(14.22mm)
Nominal Jacket thickness 0.030"(0.76mm)
Center conductor:
Copper clad aluminum (CCA)
Nominal diameter: 0.109" (2.77mm)
Dielectric:
Micro-cellular foam PE
Nominal diameter 0.450"(11.43mm)
Outer conductor:
Seamless aluminum tube
Nominal diameter: 0.50" (12.70mm)
Outer jacket:
High quality PE
Nominal diameter: 0.56"( 14.22mm)
Messenger:
Nominal diameter of steel messenger: 0.109"(2.77mm)
Minimum breaking strength of messenger: 1800lbs (816KGf)
Packing:
Mechanical characteristics:
Minimum bend radius: standard=6.0"(15.2cm)
Minimum bend radius: bonded=3.5"(8.9cm)
Maximum pulling tension=300lbs(136KGf)
Electrical characteristics:
Capacitance: 15.3±1.0pt/ft.(50±3.0nf/km)
Impedance: 75±2 ohms
Velocity of propagation: 87% nominal
Nominal DC loop resistance @68OF: 1.72 ohms/1000ft. (5.64 ohms/km)
Attenuation@ 68OF(20oC):

@Frequency MHZ	Db/100ft. (MAX.)	dB/100 meters(MAX.)
5MHZ	0.16	0.52
55MHZ	0.54	1.77
83MHZ	0.66	2.17
211MHZ	1.09	3.58
250MHZ	1.20	3.94
300MHZ	1.31	4.30
350MHZ	1.43	4.69
400MHZ	1.53	5.02
450MHZ	1.63	5.35
500MHZ	1.73	5.67
550MHZ	1.82	5.97
600MHZ	1.91	6.27
750MHZ	2.16	7.09
865MHZ	2.34	7.68
1000MHZ	2.52	8.27

Company ProfileCompetitive Advantage:
Outstanding electrical performance sends all the right signals.
Libo cable was established in 1994, it covers over 340,000 square meters on our operating area.
Libo cable has a stable workforce and engineering team, we offer products with short lead-time and high quanlity.
Our production and testing procedures all strictly follow requirement of ISO9000, and ISO14000.
Over 18 years of experience on coaxial cable, we have been in business partnership with multi-national cable companies or dealers since 1994.
Our Advantages
Hot Product
FAQ
Q: Could I use my own LOGO or design on goods?A: Yes, customized logo and/or design on goods are available. Q: May I visit your factory?A: Sure, welcome any time with prior notice. Q: Can your company accept customize?A: Yes, we can produce based on customization requirements practicable for us. Q: What's your delivery time?A: Products with stock available will usually be ready for dispatch within one working day since PO confirmed and deposit received; Products to be manufactured takes several days to several months depending the item types and quantity. Q: How do you solve after sale service?A: Any after-sales inquiry will be treated within 24 hours once received written notice from client via email, express mail, etc. Your request will meet our active response to furnish satisfying solution for you. Q: Can you send a sample for us to develop?A: We can provide samples of mature technical processing line; while special types shall be treated with technical appraisal before confirmation of sample availability. And samples can be provided free of charge or at cost price depending on specific sample type. Fees for transportation of the sample shall be assumed by client.

---
