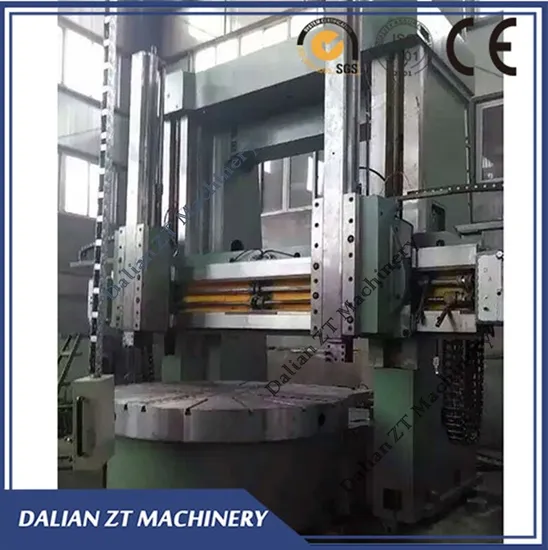

Large PLC (CNC) Strong Heavy-duty Double Column Vertical Lathe (for Wind Power Industry)

US$80,000.00-120,000.00 1 set (MOQ)

Basic Info.

Model NO.
C5231
Guide Rail
Horizontal Guide Rail
Tool Holder
2
Power Source
Electric
Controlling Mode
Artificial
Automatic Grade
Manual
Setting Mode
Floor-type
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Max. Turning Diameter
3150mm
Table Dia.
2830mm
Max. Workpiece Height
1600mm
Max. Workpiece Weight
10000kg
Tool Shank Section
40X40mm
Transport Package
Plywood Packing
Specification
Overall size: 2360X2270X2800mm
Trademark
Dalian ZT Machinery
Origin
China
HS Code
84581900
Production Capacity
200 Sets/Year

Product Description

Workpiece: Valve, pump, auto parts; ring, flange, shell parts; Turning, grooving, drilling, tapping, reaming
Specification Unit C5231
Max turning diameter mm 3150
Table diameter mm 2830
Max height of workpiece mm 1600
Max weight of the workpiece t 10
Max torque of table KN.m 63
Speed range of Table (16steps) r/min 2-63
Max.cutting force of vertical tools KN 40
Swivel degree of vertical tool degree ±30°
Tools feeding mm/min 0.2-145
Horizontal travel of vertical tool post mm -20-1750
Sliding travel of vertical tool post mm 1000
Fast moving speed of tool post mm/min 1560
Tool Bar section size mm 40×40
Seat diameter mm φ1980
Seat sliding sides mm φ1495
Vertical sliding sides mm 450/400
Sliding section size mm 250×200(T square sliding)
Beam sliding sides mm 650
Main motor power KW 55
Machine dimension mm 6050×4400×4930
Machine weight t 34
Configuration (optional) Four axis DRO

Parts supplied with machines
Name Specification Q'ty Remark
Chuck Jaw 4 sets
Left and right tool clampers Tool section 40x50 1 for each
Tool bar Tool section 22x22 1pcs
Square socket banner 24/27 1/1 set
banner S=17-19 1 pcs
Banner connector/bending head banner 1 for each
Hexgon sockets 36,46,55 1 for each
Allen banner 10 1pcs
blocks 17pcs
Bolts M24×500 17sets
blocks 80×80×6 10pcs
Live move banner 300 1pcs
Pressure grease gun 1pcs
Lathe working light 1set
Flat and cross screwdriver 1 for each

PACKING, FIXING & DELIVERY:
CUSTOMERS' VISITING:
FAQ
1. MOQ
1 set
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.
3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.
