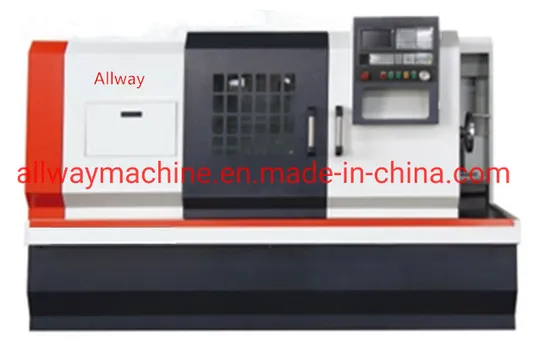

CNC Block Guideway Lathe Machine

Product Description

CLK6150 BLOCKWAY CNC LATHE
1. CLK6150 BLOCKWAY CNC LATHE SPECIFICATION

	CLK6150
Max. swing over bed	Φ500mm
Max. swing over cross slide	Φ250mm
Max. processing length	850/1500mm
Spindle bore	Φ82mm
Max. diameter of the bar	65mm
Spindle speed	1800 rpm
Spindle nose	A2-8 (A2-11 optional )
Work piece clamping way	250mm manual chuck
Spindle motor power	7.5kw
X/Z axis position accuracy	0.006mm
X/Z axis repeatability	0.005mm
X/Z axis motor torque	5./7.5 N.m (7/10N.m optional)
X/Z axis motor power	1.3/1.88kw
X/Z axis rapid feeding speed	8/10 m/min
Tool post type	4-station electric turret
Tool bar section	25*25mm
Tailstock sleeve dia.	Φ75mm
Tailstock sleeve travel	200mm
Tailstock taper	MT5#
N.W.	2850/3850kg
Machine dimension (L*W*H)	2950/3600*1520*1750mm

2.CLK6150 BLOCKWAY CNC LATHE FEATURES
high rigidity pedestal and wider lay board are suitable for heavy cutting
four station electric turret
inverter stepless speed
3.CLK6150 BLOCKWAY CNC LATHE USAGE
It can automatically process the inside and outside cylinder surface, cone surface, circle arc surface,
end face. It can also turn the single and multiple threads in metric , inch and other standard.
4.CLK6150 BLOCKWAY CNC LATHE STANDARD ACCESSORIES
GSK980TDC or Siemens 808D NC system
7.5kw common main motor and frequency changer
4 station electric turret
250 mm manual chuck
manual tailstock
integrated automatic lubrication system
coolant system
lighten system
half cover
5.CLK6150 BLOCKWAY CNC LATHE OPTIONAL ACCESSORIES
Fanuc 0I mate TD or KND1000Ti
servo motor 7.5/11 kw
inverter motor 11 kw
6 station or 8 station electric turret
10″Non-through hole hydraulic chuck
10″through hole hydraulic chuck
10″Non-through hole hydraulic chuck (Taiwan)
10″through hole hydraulic chuck(Taiwan)
steady rest
follow rest
full cover

---
