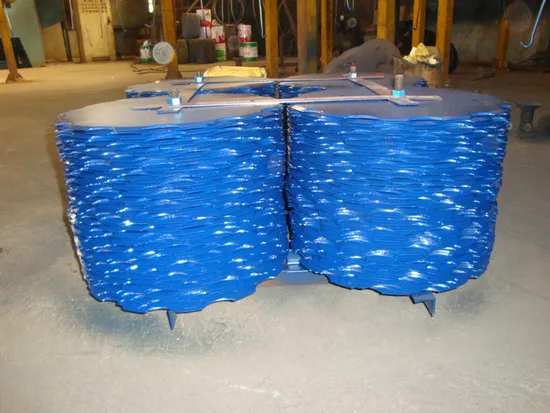

Disc Blade

Product Description

Farmland Light Disc Harrow Plough Middle Disc Harrow Cultivator For Tractor
Product introduction:
The 1BQX series Light-duty Disc Harrow are suitable for pulverized and loosening clods after ploughing and for planning the land
before sowing on cultivated land. The machines can make soil and fertilizer mix up, and clear away the stump of plants on light or
medium soil and preparing seed bed for planting.
The series Light-duty Disc Harrow frame are made of qualified steel tube, Their structures are simple and reasonable, strong and durable, convenient to operate, easy to maintain and efficient in pulverizing and penetrating into the soil and leaves the land with a smooth, even tilth.
All these satisfy the agricultural requirements of intensive cultivation.
Technical parameters:

Model	1BQX-1.1	1BQX-1.3			1BQX-1.5	1BQX-1.7	1BQX-1.9	1BQX-2.3	1BQX-2.7
Overall dimensions(mm)	1590x1230x830	1590x1440x830			1905x1600x1118	1985x1820x1118	2200x2050x1118	2650x2450x1280	2750x2850x1280
Working width(m)	1.1	1.3			1.5	1.7	1.9	2.3	2.7
Working depth(cm)	10~14
No. Of disc	12		14		16	18	20	24	28
Size of disc(mm)	460x3
Disc spacing(mm)	200
Weight(kg)	200			220	240	260	300	420	500
Productivity(ha/h)	0.7			0.84	0.97	1.1	1.3	1.5	1.7
Linkage	three-point mounted
Matched power(HP)	12~18			15~25	22~30	30~40	35~45	50~60	55~70

Our Services 1. We can offer you the sample to check our products , if the products are not what you are looking for , please
give me your detail requirement . 2. If you have any questions , please contact me at any time . I will reply you as soon as possible . 3.We also undertake prccessing al kind of CNC machine tools accessories with your requirement. Company information YUCHENG GERZHUO MECHATRONICS TECHNOLOGY Co., Ltd is a competitive private enterprise engaged in production
of machine tool parts. Machine tool parts includes varied of series, and full range specification, specialized in advantage of ER collet,
tool holders and accessories. We have established long-term friendly cooperation relationships with numerous customers all over the
world as following: USA, Sweden, Russia, Spain, France, Italy, Britain, Germany, South-east countries, Latin America countries, Africa
countries and so on. We guarantee the security and quality of our product by optimized and centralized product selections, and have built strong partnerships
with well-known companies in the industry in China.
