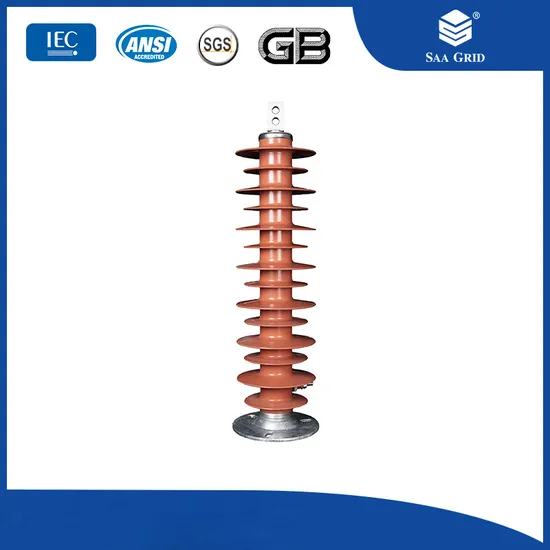

OEM Factory Transmission Line Surge Arrester Lightning Arrester

Product Description

Application: Protect various electrical equipment in the power system from damage caused by lightning overvoltage, operating overvoltage, power frequency overvoltage; Color: Red, Brown, Gray or Customer's requirement; Applicable Standard: IEC, GB, BS, ANSI, AS or Customer's requirement;

Type	Rated Voltage	Continuing Operating Voltage	U1m4 Reference Voltage at 1mA D.C ≥	Residual Voltage			0.75 U1m4Leakage Current at 0.75U1m4≤	Nominal Discharge Current	Creepage Ratio Distance≥	Weight
				Lightning 8/201.5kA	Steep1/101.5kA	Switching30/600.1kA
	kVEffective Value		kV	kV Peak Value≤			μA	KA	mm/kv	kg
YH5WZ- 17/45	17	13.6	24	45	51.8	38.3	50	5	31	2
YH5WS-17/50	17	13.6	25	50	57.5	42.5	50	5	31	2
YH5WZ-51/134	51	40.8	73	114	134	154	50	5	31	10
YH10W-102/266	102	79.6	148	266	297	226	50	10	31	37
YH10W-108/281	108	84	157	281	315	239	50	10	31	37
YH10W-204/532	204	159	296	532	594	452	50	10	31	90
YH10W-216/562	216	168.5	314	562	630	478	50	10	31	90
Order Information: 1. Rated voltage; 2. Lightning residual voltage; 3. Nominal discharge current; 4. Creepage ratio distance Ps. Different design could be supplied as customer requirements

Main Customers
FAQ
Q:What's your main products
A:High voltage electrical equipment, including circuit breaker, arrester, insulator, load switch,etc. Low voltage electrical equipment including smart meter, time switch,etc.
Q:Do you have a catalog? Could you send me your catalogue ?
A:Yes, we have a catalogue.Please contact us, we can send you product catalog online or email.
Q:Can I get some samples?
A:Yes, sample order is available for quality check and market test.
Q:Can your factory produce according to customer's requirements?
A:Yes, we can produce different products according to customers' requirements.
Q:What's your packing standard?
A:Usually we use standard cartons for packing or according to customers' requirements
Q:When is the delivery time?
A:We will arrange shipment within 3-20 days after your payment.
Q:Can we visit your company?
A: Yes, for sure, you are welcome to visit our company.

---
