Basic Info.
Communication Mode
TCP/IP RS232/485 USB Client
LCD Display
3" TFT High-Definition Graphical Interface
Speaker
Voice Prompt (Language Can Be Selected)
Fingerprint Capacity/ Log Capacity
3, 000fps/ 100,000logs
Attendance Status
Check in/out, Break in/out,Ot in/out
Communication
TCP/IP, RS232/485,USB Client
Identification
Frr<=0.01%, Far<=0.0001%
Power Supply
Power: 110/220VAC ~ 5VDC
Verification Speed(1:1)
<=0.5s
Machine Size
178(L)*140(W)*50(H)mm
Optional Function
ID Card Reader,Printer Output, 9 Pin ID
Transport Package
178(L)*140(W)*50(H)mm
Specification
CE, FCC, RoHS, ISO
Production Capacity
30000 PCS/Month
Product Description

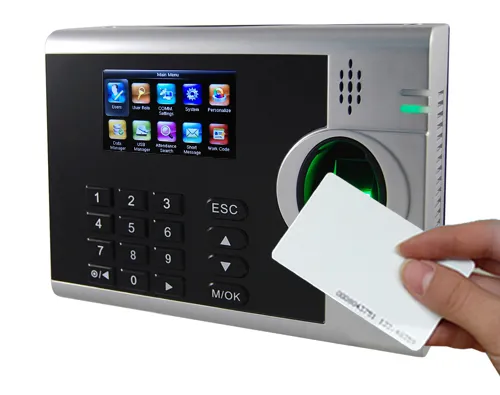

Biometric Fingerprint and ID card reader Time Attendance support external POE
Model: 3000TC/ID
Brand:Granding
3000T-C is one of the intelligent Fingerprint Time Attendance terminal of the best cost-performance. Adopt Latest fingerprint algorithm with high speed operating. Works in both standalone and network mode, USB flash drive for offline data management. Data encryption improves security. It's easy to connect with serial printer for attendance ticket, professional attendance software for free.
Feature:
1) Professional Fingerprint time attendance.
2) Supports TCP/IP, RS232/485 network function
3) Adopts double identification high technology
4) Adopt advanced optical sensor, with embedded fingerprint identify module
5) Can add Mifare card reader if you need
6) Optional: Workcode, webserver, time ring bell, printer function
7) We will offer professional management software
Packing details:
Machine Size: 176mm*50mm*138mm
Package box: 310mm*250mm*115mm
G. W.: 1.8 KG
Optional Function:
Please check detailed product description:
http://grandingchina.en.made-in-china.com
| Display/Speaker | Language |
| LCD Display: 3" TFT high-definition graphical interface | Multi Language, English, French, Spanish, Arabic, |
| Speaker: Voice Prompt (language can be selected) | etc., for more than 40 languages can be selected |
| Technical Specifications Capacity | Environment |
| Fingerprint capacity: 3,000 | Operation temperature: 0~ 45 degree centigree |
| Log capacity: 100,000 | Operation humidity: 20% ~ 80% |
| Verification/Identification | Verification/Identification |
| Verification speed(1:1): ≤0.5s | FRR: ≤0.01% |
| Identification speed(1:N): ≤1s | FAR: ≤0.0001% |
| Power Supply | Machine Size |
| Power: 110/220VAC ~ 5VDC | 178(L)*140(W)*50(H)mm |
| Communication | Attendance status |
| TCP/IP, RS232/485 | Check in, Check out, Break in, Break out |
| Standand Function | Customize Function |
| SMS, Work code, Scheduled bell, Webserver, Auto status, DST | Fingerprint capacity enlargement, 9-PIN ID, Printer output, external bell connection, USB/Host, Mifare card reader |
>>
