| US$255.00 | 100 Pieces (MOQ) |

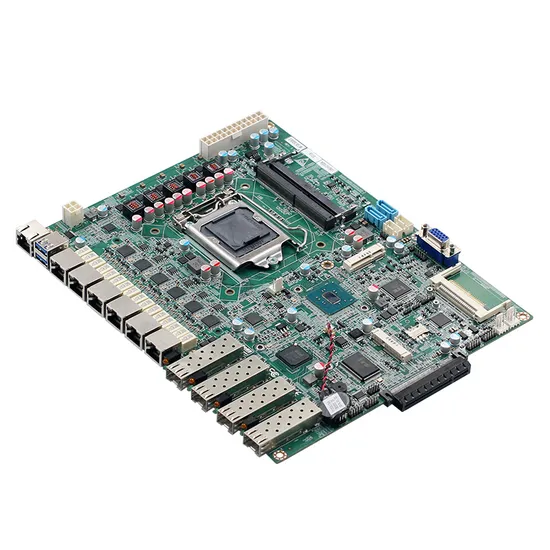

chipset | CPU | Sopports LGA1151interface Intel6th and 7th i3-i5-i7/Pentium/Celeron CPU |
| CPU Package | LGA1151 | |
| Chipset | H110/H170/Z170 high -peed chipset (In addition to the H110, other chipsets support RAID.) | |
| BIOS | EFI BIOS | |
| Memory | Technology Architecture | Dual channel DDR4 2133/2400MHz |
| Socket | 2*DDR4 ram socket | |
Video | Graphics Controller | Intel HD Graphics 610 (G4560 graphics card); graphics card type is related to CPU |
| VGA | VGA support max resolution 2048x1536 | |
| I/O back panel | Interface | 1*RJ45 2*USB3.0 6*LAN 4*optical interfaces(You can choose only two) |
| Internet | controller | 6 Intel Gigabit LAN, I211 Or I210 (LAN1 and LAN2, LAN3 and LAN4 support two groups of Bypass functions) |
| 4 optical ports (chip is I350)You can choose only two | ||
| Super I/O | controller | NCT6102D |
| Hardware control | Watchdog timer | 0-255Seconds, providing watchdog routines |
Input/output interface | USB | 2*USB3.0 compatible USB2.0 / 1.1,2*USB2.0, MAX Support +5V/1.5 |
| Com | 2*RS232 ( COM1 is RJ45 interface or pin header, and COM2 is pin header interface) | |
| PS/2 | 1*PS/2 pin interface | |
| Expansion Bus | Mini-PCle | 1*Mini-PCIe Slot ,support PCIe and USB devices |
| PCIE | 1*PCIE_8X Interface | |
| Storage | SATA | 2*standard SATAIII Interface, maximum transmission rate 6Gb/s |
| M-SATA | 1*M-SATA Scoket,Support SANDISK protocol, maximum transfer rate 6gb/s | |
| CF | 1*CF Slot | |
| Power supply | Power type | ATX Power supply |
Working Environment | Working temperature | -20ºC ~ +60ºC |
| Storage temperature | -40ºC ~ +85ºC | |
| Working humidity | 0% ~ 90% Relative humidity, no condensation | |
| Storage humidity | 0% ~ 90% Relative humidity, no condensation | |
| System suppert | Support for Windows7 Linux on the 7th generation CPU when supporting Windows7 Windows10 Linux 7 generation CPU | |
| Dimension | Size | 255 x 210 mm |
| Weight | 0.5KG | |
| certifications | CE,ROHS,FCC |
