Low Cost Construction Tools and Equipment/Cement Sandwich Wall Panel Machinery

Product Description

Product Description
precast concrete molds for sandwich foam panel making machine
1)Horizontal Automatic type wall panel production line integrates electronics, hydraulics and mechanics.
2)Its main production process consists of six parts, namely batching, mixing, automatic grouting, conveying, demoulding and stacking.
3)Two working methods, including manual and automatic recycling are available to select.
4)Its safety and stability can be achieved by the advanced industrial PLC, high-precision hydraulic components and compact mechanical structure.
EPS sandwich panel machine line is in order to adapt to recent development trend of building materials, our company bold innovation design of highly automated production lines, which enables the waste water and materials be reused through elaborate design.

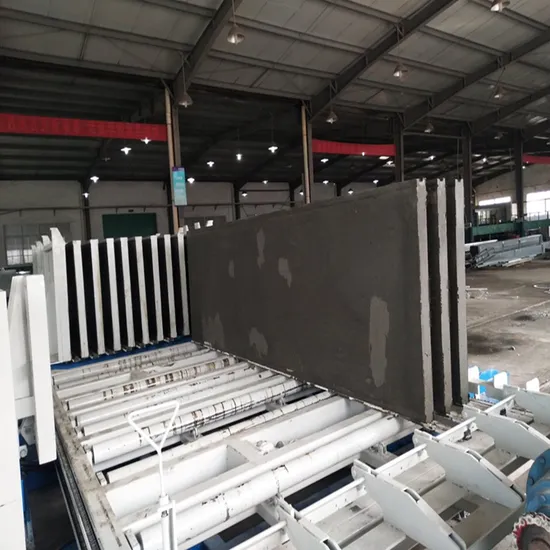

This is our unique design, can full automatically demoulding, 20panels/time. So can save a lot of your labor cost .
Machinery Parameters

Capacity	20,000sqm~600,000sqm per year
Thickness	50-250mm thickness. special sizes need to be customized
Length	2440~3600mm, special sizes need to be customized
Width	610mm , special sizes need to be customized
Raw materia	There are mainly two different types 1. Cement+fly ash/eps/ceramsite/sand, etc (optional, can choose to add or not add) 2. Fomed cement+additives
Finished board type	1. Composite board/sandwich board, with surface board 2. Lightweight solid panel, without furface board
Surface board types	1. Calcium silicate board 2. Fiber cement board 3. Mgo board
Electrical components	There are mainly two different types

Flow chart of lightweight eps automatic sandwich panel making machin

Main Features:
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Certifications

We have over 10 patented technology in our country.Would love to show to you when you come

Sample Project
FAQ

1	Question:How many projects have you installed? Reply: we have installed over 100projects in domestic and abroad.
2	Question:How many years experience do you have in this field? Reply: Our general engineer has around 20years experience; all others have over 10years experience.
3	Question:How will you provide installation&commissioning? Reply: Will provide 2~4persons(adjustable according to configuration )for installation and testing.

Finished Products EPS Concrete Sandwich Wall Panel For Partitions & Prefab House
This kind of wall panels can be used as partitons.
Advantages:
1. Fast and easy installation on site.
2. Heat insulation.
3. Sound insulation.
4. Energy saving.
5. Lightweight. EPS Concrete Sandwich Wall Panel Machine EPS concrete sandwich wall panel is a green, new kind of product. It can be used as partitions for high buildings and both external wall and partitions for steel-structure prefab houses, villas. Its birth took the place of traditional red bricks and AAC blocks,it can fully meet the requirements of modern buildings to walls.
EPS concrete wall panel has the advantages of lightweight, thin thickness, high-strength, heat and sound insulation, water and moisture proof, anti-seismic, thermal insulation, etc. Meanwhile, it can be nailed, sawed, grooved, and easy for installation on the construction site. It can reduce the loading weight of the building and increase usable space, so it can save a lot of construction cost.
OUR FACTORY
Products Jinan Oyade CNC Machinery Co., Ltd. is specialized in designing and manufacturing lightweight wall panel production forming machine. With rich experience in mechanical design and manufacturing, professional import and export services, we commitment to provide the best integrated solutions of production line for customers.
Experience Our general engineer has over 20years experience in mechanical industry, proficient in the newest machinery design/manufacturing. Other main engineers all have over 10years experience .With rich experience in mechanical design and manufacturing, professional import and export services, we commitment to provide the best integrated solutions of production line for customers.
Promise After installation and commissioning, we will provide technical formula suitable with client's demand, ensuring clients can produce qualified finished products. Additionally, we will help local experienced engineers for one year to master the production process.Our professional sales team, designing team, manufacturing team, installation team, process team, service team, promises you a 100% perfect project.
Contact Us Eva
Mobile : +8617806182338

---
