All New Th650 Injection Molding Making Machine for Compression Pallet

Product Description

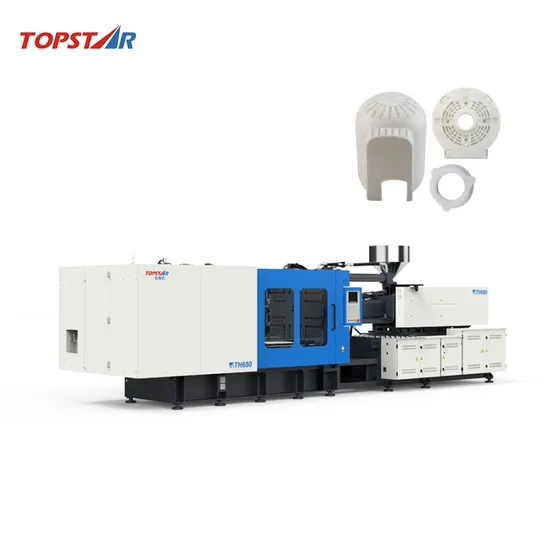

Topstar 130-1400Ton Direct Clamp Injection Molding Machine

Product Description:
The TH series injection molding machine has the ability to mold dense plastic products with complex appearance, precise dimensions or metal inserts in one go. It's widely used in electronics, packaging, 3C, auto parts and FMCG industries, etc.
Product Features:
1. Stable and sturdy, simple and practical.
2. High reliability and easy to operate.
3. Easy to process and install.
4. Easy to repair and maintain.
Accessory Introduction:
1. Advanced oil circuit design with European professional controller makes themachine action stable, combined with high product yield, fast response time, precise control, easy operation, and meet a variety of process requirements.
2. Diagonal double injection mold shift oil cylinder and linear guide, more accurate and stable injection.
3. Optimized and upgraded platen, with reliable structure and small mdeformation, can effectively protect the equipment and improve the service life of mold.
4. Focus on the actual customer experience, including industrial design, human-machine interaction and other details optimization.
5. High performance chrome plated screw, durable and efficient, wide range of application.
High color mixing/high mixing screw: to meet the high color mixing products, easy to change color.
Custom screw: specially customized plasticizing components for different products, such as PC, PA, etc
6. Professional matching of plasticizing components to meet the plasticizing requirements and color mixing performance of different materials.
Parameter Table:

INJECTION UNIT	UNITS	TH650
Screw Diamete	mm	85	90	95
Screw L/D Ratio	L/D	23.3	22.0	20.8
Screw Stroke	mm	450	450	450
Shot Volume	cm3	2554	2863	3190
Shot Weight(ps)	g	2324	2605	2903
	oz	81.8	91.7	102.2
Injection Pressure	kgf/cm3	1976	1763	1582
Injection Rate	cm3/s	605	678	756
Injection Rate	mm/s	107	107	107
Screw Speed	rpm	181
Nozzle Contact Force	t	9.8
Nozzle Stroke	mm	610
CLAMPING UNIT	UNITS	TH650
Clamping Force	t	650
Opening Stroke(Min)	mm	850
Opening Stroke(Max)	mm	1400
Platen size(H×V)	mm	1340*1340
Space Between Tie Bars(H×V)	mm	920*920
Mlould Thickness (Min)	mm	450
Mlould Thickness (Max)	mm	1000
Max. Daylight	mm	1850
Ejector Force	t	16.0
Ejector Stroke	mm	280
Locating Ring	mm	160
Number of Temp Control Zones	-	21
POWER/HEATING UNIT	UNITS	TH650
System Pressure	kgf/cm3	175
Pump Power	kw	65
Heating Power	kw	49.6
Number of Temp Control Zones	-	6+1
OTHERS	UNITS	TH650
Machine Dimensions(LxWxH)	m	8.08*2.22*2.26
Oil Tank Capacity	L	700
Machine Weight	t	23
Platen Specification

Note: Due to the continuous development of technology, improvement and update of design, the above specifications are subject to change without prior notice.

---
