Indoor Wall Mounted 4 inlet 8 outlet 2*3mm Drop Cable 8-port Fiber Terminal Box OTB NAP

Product Details

Product Description

Product Description

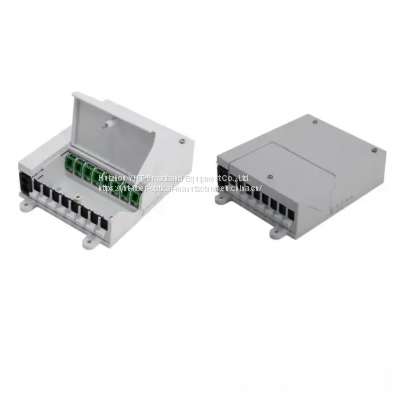

Indoor Wall Mounted 4 inlet 8 outlet 2*3mm Drop Cable 8-port Fiber Terminal Box OTB NAP
Product Description
This plastic terminal box is indoor use only, mainly for distribution vertical cable from patch cord to end customer. It is placed on the wall or bottom of the floor cabinet niche by screws.
Features:
Cable ports:4inlet, 8outlets
Max. 8 FTTH drop cable, 8 SC adapter, 8 cores for fusion
Indoor using,IP54.
The both cover is removable.
Can put steel tube type PLC splitter 1x2,1x4,1x8
High strength engineering plastic, compact size, light weight
Specification:

Model	OTB-P58
Dimension (H*W*D)	192*133*47mm
Cable ports	4 in, 8 out
Cable dimeter	In:12 mm, out: 2*3 mm
Installation	Wall mounted indoor
Max. Fusion Capacity	8cores
Splice tray	1 piece
Material	ABS
Color	White
Suitable Splitter	1x4,1x8 steel tube PLC splitter
Max. Adapter	8 pieces SC simplex coupler, without falange

Key AttributesIndustry-specific attributesType
Racks & Enclosure
Other attributesModel Number
OTB-P058
Place of Origin
Guangdong, China
Brand Name
CSYHT
Use
Fiber patch cord manufacture
Warranty Time
1 year
Network
None
Product Name
8-port Distribution Box
Cable ports
4 in, 8 out
Cable diameter
In:12 mm, out: 2*3 mm
Installation
Wall mounted indoor
Max. Fusion Capacity
8cores
Splice tray
1 piece
Material
ABS
Color
White
Suitable Splitter
1x4,1x8 steel tube PLC splitter
Max. Adapter
8 pieces SC simplex coupler, without falange
Packaging and DeliveryPackaging Details
8 port fiber distribution box
Carton Box;
1.5KGS/pcs
Selling Units:
Single item
Single package size:
40X40X30 cm
Single gross weight:
1.500 kg
Package Type:
8 port fiber distribution box Carton Box; 1.5KGS/pcs
Lead Time

Quantity (pieces)	1 - 200	> 200
Lead time (days)	15	To be negotiated

SamplesMaximum order quantity: 1 piece
Sample price:$20.00/piece
CustomizationCustomized logo
Min. order: 200
Customized packaging
Min. order: 1000
Graphic customization
Min. order: 200
For more customization details, message or email supplier!

---
