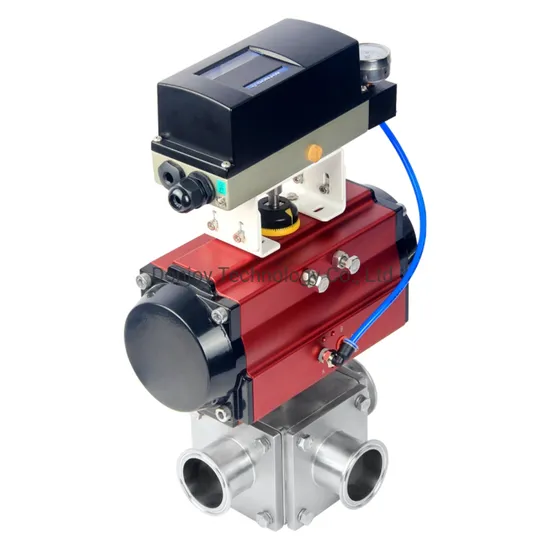

CE Stainless Steel 3-Way Ball Valve with Red Actuator

Product Description

Sanitary 3A Certified Three-Piece Ball Valve for Brewery Dairy Beverage
SPECIFICATION:

Product Name:	Sanitary 3A Certified Three-Piece Ball Valve for Brewery Dairy Beverage
Valve Body Material:	SS304 or SS316L
Seal Material:	PTFE
Max. Working Pressure:	10Bar
Max. Working Temperature:	150 degree C
Availably size:	DN10-DN100 or 1/2" - 4"
Availably connection:	Thread,Weld,Clamp, Flange
Availably standard:	DIN,SMS,3A
Operated:	Manual,Pneumatic,Electric
Ball:	T port, L port, direct way,two way
Type of valves	One way ball valve, 2way ball valve, 3-piece ball valve, 3-way ball valve
Certificate:	FDA,CE ,3-A

Design and Features:

1.	Free of maintenances
2.	Compact and portable
3.	Small operating torque
4.	Gasket complies with PTFE FDA 177.2600
5.	Hand lever can be installed on the side of the valve body, no matter of the flow direction
6.	Connection: threadm clamp, weld, flange, DIN,SMS, RJT, FIL
7.	It can be installed with pneumatic and electric actuators.
8.	The parts contacted with media is AISI 304/316L
9.	Other parts AISI304
10.	Certification:PED, 97/23/EC

Feature:
1.Donjoy manufacture more than 27 years,which means we had upgraded and optimized many times,solve the problem in advance to ensure best performance and best application.
2.Manufactured more than 1 million pcs
3.Forged body,one time CNC machining, guarantee machining precision.
4.Euro imported gasket,meet FDA standard.
5.Manual type,pneumatic type, electric type all interchangeable.
6.Have certificate of FDA,3-A ,CE.

Connection:
Clamped, welded and threaded,flanged etc.
Packaging Details:
Bubble pack for each valve.
Outside packing is by carton or plywood case.

If you have any inquiry, please leave message below and "Click Send "

---
