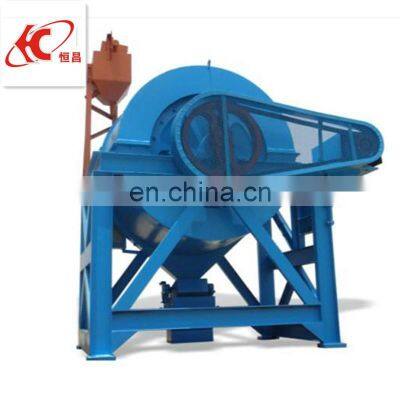

Product Description of Gold panning centrifugal gold concentrator Nelson gravity gold separator machine
Centrifugal separator consists of two major parts, which are separation mechanism and auxiliary mechanism.
The separation structure of centrifugal separator is drum, which is hollow and of the shape of frustum.
The slope of drum inner surface is from 30 to 50 degree, which is made from steel plate flange welding, cast aluminum or glass fiber reinforced plastics. Drum is fixed to the axle by chassis and spins along with the axle.
Auxiliary mechanism consists of feeding device, ore discharge device, flush device and the procedure control device
Working principle of Gold panning centrifugal gold concentrator Nelson gravity gold separator machine
Ore pulp is delivered by feeding pulp distributor through two location to the inner wall of drum, while the drum is spinning at high speed.
Ore pulp spins along with the drum. Under the action of centrifugal force, the heavier mineral deposits on inner wall and spins along with the drum. The lighter mineral grains spin at a speed different to drum. During the process of spin, lighter mineral grains will be discharged out of the drum. After 3 minutes, the pulp distributor will turn away from normal position and stop feeding ore pulp. After finishing discharging the tailings, discharging pulp distributor will turn away from normal position and be prepared to receive the concentrate. High pressure flushing water valve will switch on automatically and wash the concentrate down off the inner wall. Then the valve will switch off automatically.
After discharging all the concentrate, discharging and feeding pulp distributor will return to their normal positions and start another separation circulation.
Application of Gold panning centrifugal gold concentrator Nelson gravity gold separator machine
Centrifugal separator is known as centrifuge or centrifugal chute. Strong centrifugal force produced by high speed spin strengthens the process of gravity separation and effectively recover the ultrafine ore particles. Nowadays, centrifugal concentrator is widely used for the recovery of gold, tungsten, lead, manganese, iron, etc.
Main Features1. Very effective for the process of ultrafine ore slime, The recovery rate of 37-39 micron is over 90%.
2. Under the action of centrifugal force, the process of gravity separation is strengthened and the separation time is much shortened. Therefore, the capacity of centrifugal concentrator is much bigger.
3. Small land coverage and high automation.
Certifications
Detailed Images
Working site
Name: Venezuela gold processing site
They use the crusher, ball mill, shaking table, centrifugal concentrator to collect gold.
Working site
Name: Phipplines gold processing site
They use ball mill, centrifugal concentrator, cynaid to collect gold from tailings
Working Site
Name: domestic working site to process rare minerals
Installation tipes
Detail installation tips will be provided for customer for easy installation and operation
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
Packaging
|
|
Size
| 20 feet container
|
Weight
| 20 ton
|
Packaging Details
| The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
Packaging
|
|
Size
| 40 feet container
|
Weight
| 20 ton
|
Packaging Details
| Large quantity order will be loaded in the containers
|
