Lightweight Powerful Solar Energy System Pure Sine Wave Inverter

Product Description

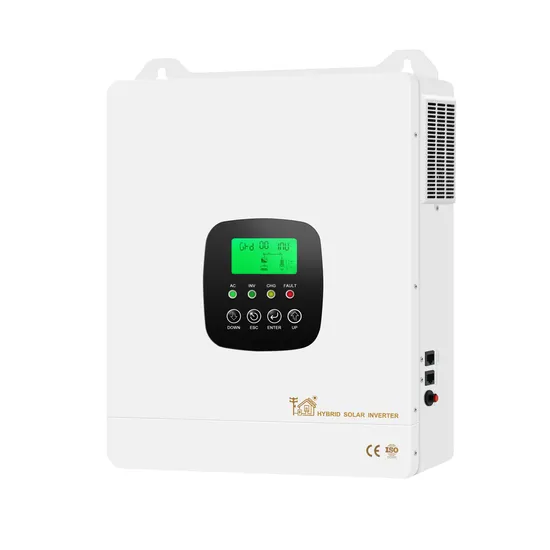

Product Description HF Photovoltaic energy storage and off grid inverter 3.3KW - 12.3KW Advantages and characteristics :
√ Adopting high-frequency design, high power density, small size, and high overall efficiency;
√ Bidirectional energy storage design enables bidirectional flow control of energy, and both photovoltaic and mains power can charge the battery;
√ Ultra wide MPPT range,with a minimum of 40Vdc (24V model)/80Vdc (48V model);
√Capable of setting working modes (grid connected mode, off grid mode, hybrid mode);
√ Equipped with grid connected current setting function;
√ Equipped with output priority setting function;
√ Equipped with charging priority setting function;Detailed photos Application scenarios connection instructions
Product Parameters

Product model: HF		33224	43224	63248	83248	103248	123248
Photovoltaic	Maximum photovoltaic input power	5000W		7000W	4500W*2	6000W*2	6000W*2
	MPPT tracking voltage range	40VDC -450VDC		80VDC-450VDC
	Rated input voltage	360VDC
	Maximum photovoltaic input voltage Voc (Under the lowest temperature conditions)	500VDC
	Maximum photovoltaic input current	18A		27A	18A*2	22A*2	27A*2
	MPPT tracking channels (input channels)	1			2
Battery&Charging	Battery type	Valve hole lead-acid battery/lithium battery
		Custom battery (can set charging and discharging parameters for different types of batteries through the operation panel)
	Rated battery voltage	24VDC		48VDC
	Battery voltage range	21~30VDC(default value)		42~60VDC(default value)
	Maximum photovoltaic charging current	120A	150A	120A	150A	180A	200A
	Maximum mains charging current	80A	100A	80A	100A	120A	140A
	Maximum charging current	120A	150A	120A	150A	180A	200A
On-grid Operation
On-grid (AC )	Rated output power	3300W	4300W	6300W	8300W	10.3KW	12.3KW
	Rated output voltage	220VAC/230VAC/240VAC
	Output voltage range	187VAC~264VAC
	Rated output frequency	50Hz/60Hz
	frequency range	47Hz~52Hz(50Hz),57Hz~62Hz(60Hz)
	Rated output current	14.5A/13.9A/13.3A	19.5A/18.7A/17.9A	28.6A/27.4A/26.2A	37.7A/36.1A/34.6A	46.7A/44.9A/42.9A	55.9A/53.5A/51.3A
	power factor	>0.98(Rated power)
Off-grid operation
AC Input	Rated input voltage	220V /230V/240V
	Range of mains input voltage	165VAC -280VAC/ 120VAC~280VAC(Can be set)
	Rated input frequency	50Hz/60Hz
	Input frequency range	45Hz~55Hz(50Hz) ,55Hz~65Hz(60Hz)
AC output	Rated output power	3300W	4300W	6300W	8300W	10.3KW	12.3KW
	Rated output voltage	220V /230V/240V
	Output voltage accuracy	±2%
	Rated output frequency	50Hz/60Hz
	Output frequency accuracy	±1%
	Output waveform	Pure sine wave
Hybrid operation (complementary mode))
AC Input	Rated input voltage	220V /230V/240V
	Range of mains input voltage	187VAC~264VAC
	Rated input frequency	50Hz/60Hz
	Input frequency range	47Hz~52Hz(50Hz) ,57Hz-62Hz(60Hz)
AC output	Rated output power	3300W	4300W	6300W	8300W	10.3KW	12.3KW
	Rated voltage	220VAC/230VAC/240VAC
	Rated output current	14.5A/13.9A/13.3A	19.5A/18.7A/17.9A	28.6A/27.4A/26.2A	37.7A/36.1A/34.6A	46.7A/44.9A/42.9A	55.9A/53.5A/51.3A
General parameters
Maximum conversion efficiency (battery discharge)		94%(Peak value)
MPPT tracking efficiency		≥99.9
Conversion time		10ms(Typical value)
Panel display		LCD+LED
Heat dissipation method		Intelligent fan control
Communication capability		RS485/Mobile APP (WIFI monitoring or GPRS monitoring) (optional)
Protection level		IP20
Installation method		Wall mounted
Protection	Battery undervoltage alarm	22VDC(default value)		44VDC(default value)
	Battery undervoltage protection	21VDC(default value)		42VDC(default value)
	Anti islanding protection	≤2S
	Overload power protection	Automatic protection (battery mode), circuit breaker or fuse (mains mode)
	Output short circuit protection	Automatic protection (battery mode), circuit breaker or fuse (mains mode)
	Over temperature protection	> 90 ºC(Turn off inverter and charging)
Environment	working temperature	-10ºC ~50ºC
	Storage temperature	-15ºC ~60ºC
	noise	≤55dB
	Altitude	2000m(Exceeding the usage limit requires a reduction in usage)
	relative humidity	0%~95% ,No condensation
Size and weight
Product size(L*W*Hmm)		325*275*102	375*297*102	390*320*112	515*365*117	535*462*117	630*540*130
Packaging size(L*W*Hmm)		400*330*167	450*352*167	465*375*187	615*460*212	630*557*212	730*635*225
Net weight(kg)		5.5	6.7	8	13	14.7	22
Gross weight(kg)		6.5	8	9.5	15	17	25
