US$109,000.00-499,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification

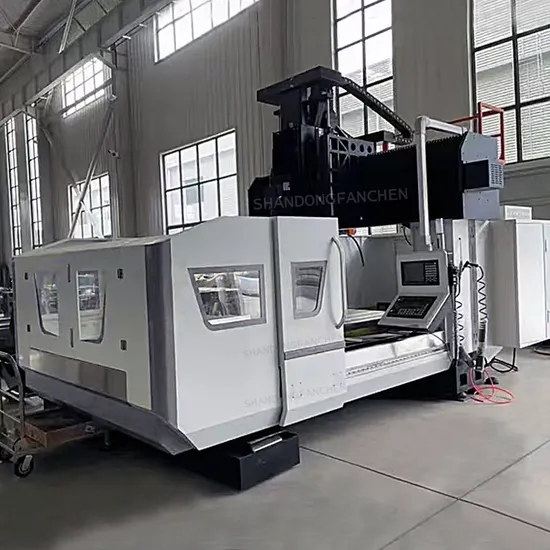

Five-Axis Gantry Machining Center
Certification
GS, CE, ISO 9001
Bed Dimension
3000/1800mm
Maximum Load-Bearing of The Workbench
8000kg
Maximum Stroke of Axis
3200mm
Ymaximum Travel of Y Axis
2200mm
Zmaximum Trip on The Z Axis
1000mm
Maximum Power of The Spindle Motor
15/18.5kw
Three-Axis Motor Torque
36n.M
(**)Floor Area (Length * Width * Height)
8500 * 4250 * 4100 mm
Specification
8500 * 4250 * 4100 mm
Packaging & Delivery
Package Size
850.00cm * 425.00cm * 410.00cm
Package Gross Weight
8000.000kg
Product Description
| Content | Name (of a thing or organization) | Specifications and models |
| Staging | bed dimension | 3000mm X 1800mm |
| Maximum load-bearing of the workbench | 8000kg |
| T(-)T-type groove (slot number-slot width) | 8-22 mm |
| Range of work | xMaximum stroke of axis | 3000 mm |
| YMaximum travel of Y axis | 2200 mm |
| ZMaximum trip on the Z axis | 1000 mm |
| Gantry width | 2200 mm |
| Maximum work size height | 1200 mm |
| Principal axis | Spindle form | Belt type |
| Range of speeds | 6000 r/min |
| Maximum power of the spindle motor | 15/18.5 kw |
| Minimum / maximum distance from spindle to mesa | 2000-1200 mm |
| Spindle taper | BT50/φ190 |
| Servo | Three-axis motor torque | 36/36/36 NM |
| Cold pump motor | 0.75 KW |
| Feed | Quick travel | X:20 m/min |
| Y:20 m/min |
| Z:15 m/min |
| Maximum cutting speed | 1-10000 mm/min |
| Rolling bead line rail(X/Y/Z) | 55/2mm;55/3mm;55/4mm |
| Iead screw(X/Y/Z) | 8016/5012/2012 MM |
| Tool magazine | Knife library form | Disk knife library |
| Knife library capacity | 30 pcs |
| The maximum knife weight | 18 kg |
| ()Maximum knife diameter (full knife) | 112 mm |
| ()Maximum knife diameter (adjacent knife) | 200 mm |
| The maximum knife length | 300 mm |
| Change the knife time | 2.5 s |
| System | | siemens |
| Positioning accuracy | Xx-axis | 0.03 mm |
| YY-axis | 0.020 mm |
| Zaxis | 0.015 mm |
| Repeat positioning accuracy | Xx-axis | 0.014 mm |
| YY-axis | 0.012 mm |
| Zz-axis | 0.010 mm |
| Verticality | X/Y/axle | ±0.005/300 mm |
| Machine tool size | Floor area (length * width * height) | 8500 * 4250 * 4100 mm |
FAQ
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
>>
