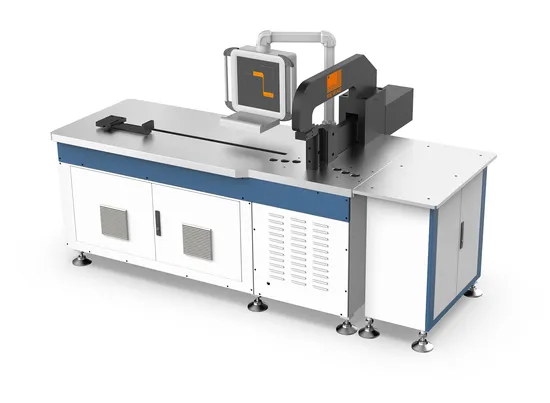

New CNC Bending Machine Processing Machine for Copper and Aluminium Busbar with High Precision

Product Description

Product Description 1. This machine adopts unique large closed type bending structure.
2. It also has the convenience of the open type bending.
3. It possesses the premium property of the closed type bending.
4. The bend unit (Y-axis) has the function of angle error compensation, its bending accuracy can meet the high performance norm.
5. When it is in vertical bending, the machine has the function of auto clamping and release, the processing efficiency is greatly improved compared with manual clamping and release.

Detailed Photos Video Link https://cncmachinegroup.en.made-in-china.com
Specification

Item	Unit	Parameter
Nominal Force	KN	400
Bender Accuracy	Degree	±0.3°
Max bending Stroke	mm	250
Stroke of side striker	mm	2000
Max Moting Speed of Side striker(X Axis)	m/min	15
Bending Head(Y Axis)	m/min	Fastest 5; low: 1.25
Min inner Width of U-shape bend	mm	40(Note:Please consult us for smaller dimensions)
Max bending angle	degree	90
Level bending (W*H)	mm	200X15
Vertical Bend(W*H)	mm	125×15
Total power	kw	7.2
Main machine dimension:L*W	MM	4150X1590
TOTAL Weight	kg	2700

Configuration

Control Section
Serial No.	Name			Brand Name
1	Programmable Control			OMRON
2	Sensor			Telemacanique From Schneider
3	Control Button			OMRON
4	Touch Screen			OMRON
5	Computer			Lenovo
6	AC Contactors			ABB
7	Circuit Breaker			ABB
8	Servo Motors			YASKAWA(Japan)
9	Servo Drivers			YASKAWA(Japan)
10	Control software and Three-dimensional computer-aided design			Gaoji Busbar Processing System(GJ3D)
Transmission System
Serial No.		Name	Brand Name
1		Precision Straight rail	Taiwan HIWIN
2		Precision Ball Screw	Taiwan HIWIN
3		Bearing	Japan NSK

Bending Die

Hydraulic vertical bending die	Level bending die	Dent-free female die

Package and Shipment
After Sales Service Our service
--- Inquiry will be replied within 2 hours.
--- All the way tracking service offered from placing order to delivery.
--- We can provide professional guide installation.
--- One year warranty and all round after sale service.
--- Customized design and flow chart are available for our clients.
--- Independent R&D team and strict & scientific management system.

---
