Cimc LPG Tank Semi-Trailer Truck Lorries Semi Trailer Tanker for Sale

Product Description

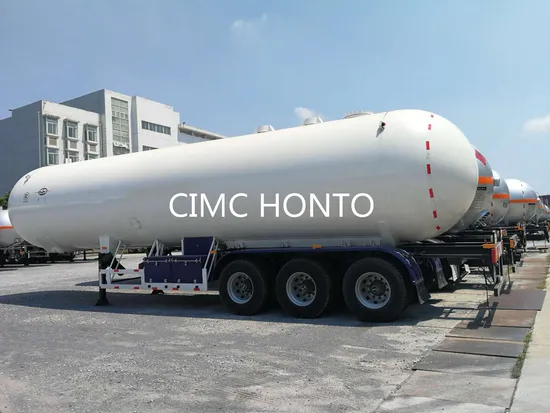

Product Description LPG Semi-trailer
HONGTU has 30-plus years of experience in design and fabrication of LPG semi-trailers. With European and American certificates of pressure vessels, HONGTU can supply various semi-trailers as per Chinese standard, international standards, and tailered design register, etc. HONGTU has cooperated with the international reputed sulliers of valves, instruments and other accessories, such as REGO, FISHER, ROCHESTER, WIKA, CORKEN, BLACKMER, etc. in the long term so as to supply the optional brands of valves, pumps and flow meters etc. as per clients' requirements..

Technical Specification
Design code: ASME BPVC VIII-1/VIII-2. EN 12493, GB/T 19905, JB4732 Volume: 30m³~70m³
Materials: SA-516, SA-517, SA-612, P460, Q420R, Q370R, etc.
Tank type: Cylindrical tank, Eccentric cone tank, etc.
Vehicle type:
ASME codes pressure vessel material plus international brands of valves and safety accessories
Chinese standard pressure vessel material plus Chinese brands of valves and safety accessories.
Chinese standard pressure vessel material plus international brands of valves and safety accessories Note: The information of HONTO brand LPG semi-trailers listed as below are only for recommendations and references. CIMC HONGTU, as the TOP 1 manufacturer of LPG transport tankers in China, can provide customized products according to customers' requirements.
Hot Products on Sale-Chinese Standard

Capacity	36m3	46m3	52m3	54m3	58m3	61.9m3
Payload	15120kg	19320kg	25506kg	22680kg	26915kg	26000kg
Kerb Weight	11880kg	14680kg	13374kg	13000kg	15000kg	14000kg
Gross Vehicle Weight	27000kg	34000kg	38800kg	35680kg	41915kg	40000kg
Dimension(L*W*H)	9400*2500*3900mm	10360*2500*3990mm	12000*2500*3990mm	11985*2550*4000mm	13150*2500*4100mm	13590*2550*4000mm
Design Pressure	1.61Mpa	1.61Mpa	1.77Mpa	1.61Mpa	1.72Mpa	1.61Mpa
Design Temperature	-20~50ºC	-20~50ºC	-20~50ºC	-20~50ºC	-20~50ºC	-40~50ºC
Corrosion Allowance	1mm	1mm	1mm	1mm	1mm	1mm
Shell Material	Q370R	Q370R	Q420R	WH590E	Q370R	WH590E
Head Material	Q370R	Q370R	Q420R	16MnDR	Q370R	16MnDR
Shell Thickness	12mm	13mm	11mm	10mm	12mm	10mm
Head Thickness	11mm	12mm	10mm	8mm	8mm	8mm

Hot Products on Sale-ASME Standard

Capacity	38.3m3	42m3	47.5m3	50m3	55m3	61.9m3
Payload	18000kg	20400kg	23000kg	23375kg	25710kg	27575kg
Kerb Weight	11900kg	11900kg	14000kg	15225kg	16790kg	20985kg
Gross Vehicle Weight	29900kg	32300kg	37000kg	38600kg	42500kg	48560kg
Dimension(L*W*H)	10470*2550*3920mm	11850*2500*3850mm	13137*2500*3850mm	13097*2500*4000mm	14297*2500*4000mm	13493*2561*4000mm
Design Pressure	1.724Mpa	1.61Mpa	1.724Mpa	1.724Mpa	1.724Mpa	2.06Mpa
Design Temperature	51.7ºC	50ºC	-23.3~51.7ºC	50ºC	50ºC	55ºC
Corrosion Allowance	0mm	1mm	0mm	0mm	0mm	1.5mm
Shell Material	SA612M	SA612M	SA612M	SA612M	SA612M	SA537CL1
Head Material	SA612M	SA612M	SA612M	SA612M	SA612M	SA537CL1
Shell Thickness	12.5mm	9mm	12mm	12.5mm	14mm	18mm
Head Thickness	8mm	10mm	8mm	8mm	8mm	10mm

III. European Standard ADR

Design Code	EN12493:2013+A1:2014
Volume	60m³
Max. Payload	25200kg
Kerb Weight	14800kg
Gross Vehicle Weight	40000kg
Outline Dimension LengthxWidthxHeight	13115x2550x4000 mm
Wheel Base	7900+1320+1320
Design Pressure	2.1/-0.04 MPa
Maxiumum Working Pressure	1.62 MPa
Design Temperature	-20/+50ºC
Material of Shell	P460NL1
Nominal Thickness	10(Shell)/13(End) mm
Hydrostatic Pressure Test	2.10 MPa

Accessories and Vavles LPG Semi-trailer with Pump, Flowmeter, Hose Reel HONGTU is qualified to design and manufacture LPG semi-trailer with pumps and loading & unloading system on the side or at the rear of the tankers. The pump can be driven by PTO, hydraulic oil or electric motors. The valves and instruments used on the tankers are well-known international brands, catering to application requirements of Europe, America, Southeast Asia and other countries. Technical specification Design code: ASME BPVC VIII-1/VIII-2. EN 12493, GB/T 19905, JB 4732 Vessel Capacity: 30m³~70m³ Materials: SA-516, SA-517, SA-612, P460, WH590E, Q370R, etc.
Certifications

Company Profile
Jingmen Hongtu Special Aircraft Manufacturing Co., Ltd (hereinafter called CIMC HONGTU) is a wholly owned enterprise of CIMC ENRIC Holding Co., Ltd(CIMC ENRIC)., a listed company in Hong Kong. It was founded in 1971, formerly known as Hongtu Aircraft Factory(HONGTU), affiliated to the Aviation Industry Corporation of China(the Third Ministry of Machine Building Industry). With a history of 40 years of pressure vessel manufacturing and an investment of CNY 1.3 Billion in Jingmen City, CIMC HONGTU has become the largest production base of energy and chemical equipment in the central and western regions of China. It is mainly devoted to the manufacturing of high-end equipment for the energy and chemical industry.With the subject of scientific and technological innovation and the core of intelligent manufacturing and green manufacturing, focusing on manufacturing of high-end energy and chemical transportation and storage equipment. The main products are LPG road tankers, LNG cryogenic liquid road tankers, large scale spherical tanks, cryogenic flat-bottom storage tanks, large scale special chemical vessels, marine "oil to gas" fuel tanks and supporting equipment for energy and chemical systems. The company can provide one-stop integrated solutions for customers such as the storage stations, peak-shaving stations, refilling stations of energy and chemical gas and natural gas.The production and sales of LPG road tankers of CIMC HONGTU has ranked No.1 for the last 40+ consecutive years in China, and the spherical tank production and sales has ranked No.1 in domestic market. CIMC HONGTU's products have been exported to 50 plus countries and regions in Europe, Middle East, North & South America, Southeast Asia, Northeast Asia, Mid-Asia and Africa.
Our Advantages
01 Powerful R&D Capability HONGTU has more than 300 technical staff in Tankers & Vessels R&D Department, Cryogenic Vessel R&D Department, Engineering R&D Department, Production Technology Department, Welding Technology Department, Quality Technology Department and Quality Control Department. The company has around 100 valid patents (including 18 invention patents, 1 appearance patent). 02 Strong Production Capacity The company has various manufacturing equipment over 2,300 sets. The total area of the company is 130,000m³, of which, the total area of the workshop is 103,641m³. There are 6 manufacturing workshops, including LPG tanker and vessel manufacturing workshop, spherical shell prefabrication workshop, LNG and cryogenic liquefied gas tanker and vessel manufacturing workshop, household LPG storage tank manufacturing workshop, petrochemical equipment manufacturing workshop and chassis manufacturing workshop. The company ranks No.1 in production capacity & efficiency of the LPG vessels in China. The company ranks No.1 in working capacity & efficiency of the spherical shell prefabrication line in China, with annual capacity of 70000 tons. The company owns the first intelligent production line for household LPG storage tanks in China, with annual capacity of 12000 units/shift. 03 Scientific and Rigorous Quality Assurance System The whole process of product quality control from design to delivery needs to pass 115 quality control points, 192 quality control procedures, with 66 QC documents to support and to be followed. The annual number of X-ray film is more than 500,000 pcs, and the quality file of each product is archived throughout its life cycle, and each weld can be traced back. Hongtu owns a special quality control center, which obtains grade 3 certificate for national defense metrology and has inspection capacity of length, hardness, pressure, temperature, metallographic, electromagnetic, chemical and mechanical, covering all the inspection of outsourced material and process tests. 04 Fast and Efficient After-sales Services The company has 30 plus professionals engaged in after-sales services, and it has its own customer service center, always dedicated to providing the best on-site after-sales service and online after-sales technical support. With strong technique, manufacturing, testing and other capabilities, Hongtu is committed to providing excellent service in the whole product life cycle.

---
