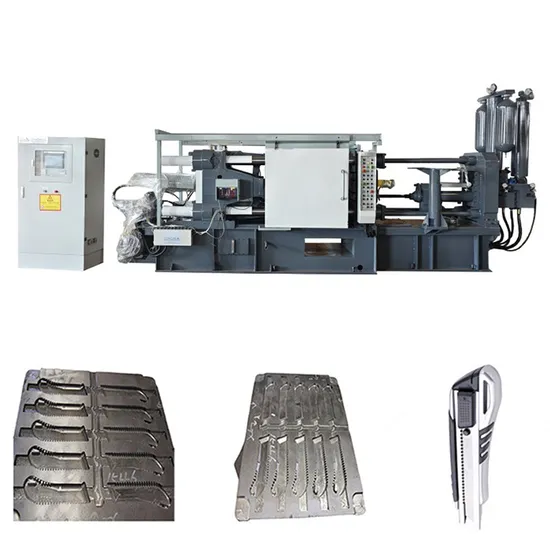

Hpdc Cold Chamber Horizontal Zinc Magnesium Aluminum Metal Injection Molding Cutting Tool Die Casting Machine

Product Description

Product Description

Product Parameters

LH series of standard parameter table (130S)
ITEMS	Unit	Specification
Clamping Force	KN	1450
Opening stroke	mm	350
Die thickness(Min--Max)	mm	250~500
Space between tie bars	mm	429*429
Ejector stroke	mm	85
Ejector force	KN	108
Injection position(0 as center)	mm	0,- 100
Injection force(intensification)	KN	220
Injection stroke	mm	320
Plunger diameter	mm	¢40 ¢50 ¢60
lnjection weight(aluminum)	Kg	1.6
Casting pressure (intensification)	MPa	175/112/77
Max. casting area(40Mpa)	CM2	362
Injection plunger penetration	mm	115
Diameter of pressure chamber flange	mm	110
Height of pressure chamber flange	mm	10
Max.working pressure	MPa	12
Motor power	Kw	11
Dimensions (L*W*H)	m	4.6*1.2*1.5
Machine lifting reference weight	T	4.5
Oil tank capacity	L	480

Due to the continuous advancement of technology, parameters are subject to change without further notice. Company Profile

Certifications

RFQ
1. Who are we?
We are based in Anhui, China,Cooperate with Longhua Factory start from 2014,sell to Domestic Market(50.00%),Southeast Asia(15.00%),South Asia(12.00%),South America(8.00%),Eastern Asia(8.00%),Africa(5.00%),Mid East(2.00%). There are total about 11-50 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
Die Casting Machine/Robot For Die Casting Machine,Peripheral Equipment,Die Casting Machine Parts ,Castings Mould ,Melting Furnace
4. Why should you buy from us not from other suppliers?
Longhua Die Casting Machine has 40 years of production experience, and cooperate with the Chinese Academy of Science and Technology, you know that China's space shuttles are cooperating with the Chinese Academy of Science and Technology.
5. What services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,Cash;
Language Spoken:English,Chinese

---
