Basic Info.
Number of Cylinder
Binoculars
Stereoscopic Effect
Stereoscopic Effect
Kind of Light Source
Ordinary Light
Principle of Optics
Polarizing Microscope
Total Magnification
6X-50X
Field of View
36.7mm-4.4mm
Interpupillary Distance
48mm-75mm
Binocular or Trinocular Tube
Inclined 45
Diopter Adjustment
5 Diopter
Binocular Body Rotation
360
Transport Package
Standard Exporting Packing
Production Capacity
10, 000PCS/Year
Product Description

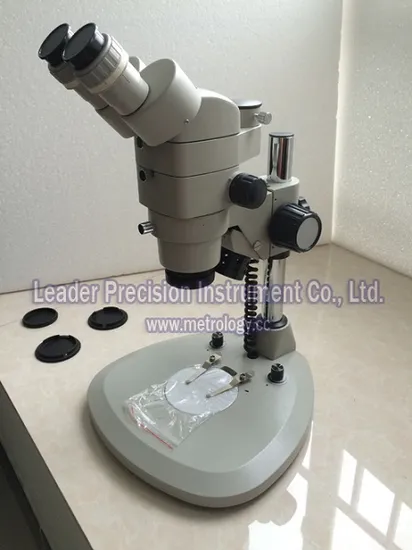

Binocular Stereo Inspection Microscope (XTS-2023)
Usage:
This stereo microscope is widely used in medical and health, electronics, precision machinery industry and so on, specially suitable to I nspect the naked IC, LCD printing paste, PCB board, LED production, stamping parts, plated parts and electronic components
Feature:
1) Zoom lens microscope
2) Big working table
3) Parallel Beam Path Design
4) Can connect CCD camera
Standard delivery:
Main unit: 1PCS
Eyepiece patch: 2PCS
Anti-dust cover: 1PCS
Optional accessories for this microscope:
Eyepiece: WF5X, WF15X, WF20X, WF25X, WF30X
Auxiliary lens: 0.5x, 0.75x, 1.5x, 2x
| Technical data: |
| zoom ratio/range | 1: 8.3 |
| Objective lens zoom range | 0.6X-5X |
| Eyepiece | WF10X/22mm |
| Total magnification | 6-50X |
| Field of view | 36.7mm-4.4mm |
| Working distance | 95mm |
| Interpupillary distance | Adjustable 48mm-75mm |
| Binocular tube | Inclined 45º |
| Diopter adjustment | ± 5 diopters |
| Binocular body Rotation | 360º |
| Eyepiece | WF10X | WF15X | WF20X | WF25X | |
| Auxiliary lens | Magnification | Field of view | Magnification | Visual field | Magnification | Visual field | Magnification n | Visual field | Working distance(mm |
| 0.5X | 3X-25X | 73-8.8 | 4.5X-37.5X | 53.3-6.4 | 6X-50X | 43.3-5.2 | 7.5X-62.5X | 40-4.8 | 200 |
| 0.75X | 4.5X-37.5X | 49-5.9 | 6.75X-56.25X | 35.5-4.2 | 9X-75X | 28.8-3.5 | 11.25X-93.8X | 26.6-3.2 | 125 |
| 1X | 6X-50X | 36.7-4.4 | 9X-75X | 26.7-3.2 | 12X-100X | 21.6-2.6 | 15X-125X | 20-2.4 | 95 |
| 1.5X | 9X-75X | 24.4-2.9 | 13.5X-112.5X | 17.7-2.1 | 18X-150X | 14.4-1.7 | 22.5X-187.5X | 13.3-1.6 | 55 |
| 2X | 12X-100X | 18.4-2.2 | 18X-150X | 13.3-1.6 | 24X-200X | 10.8-1.3 | 30X-250X | 10-1.2 | 35 |
>>
