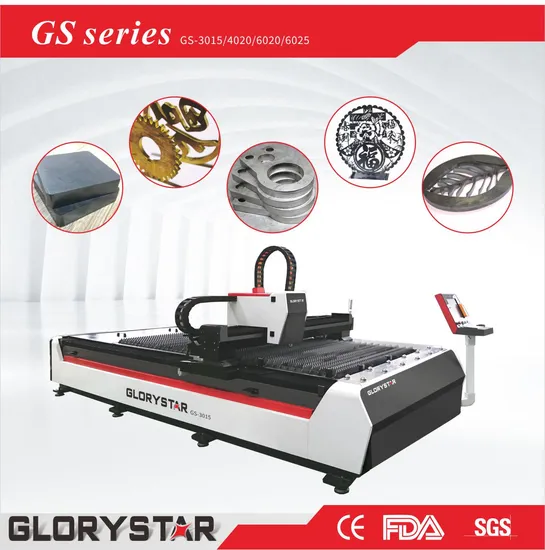

Fiber Laser Cutting Machine for Drill Bits Metal

Product Description

Fiber Laser Cutting Machine for drill bits metal
Product Features
Because of flexibility of laser technology,the fiber laser cutting machine can not only make a quick reaction to thevariety of the market environment,but also satisfy the variety of the customer requirement.
High and powerful stability,speed and precision of fiber laser cutting machine leads users at higher speed in theagricultural machinery,to increase the quality and reduce the cost of production.
Accessories
Applicable industry
Widely used in the filed of Agricultural Machinery,such as tractor,harvesting and planting equipment.
<<<Applicable Materials
Widely used to all kinds of metal materials with non-contact fast cutting,engraving and drilling,such as carbon steel,stainless steel,alloy,manganese steel,galvanized steel,aluminum,copper and metal pipe processing,etc.
Samples Show

GLORYSTAR 1000W FIBER LASER CUTTING THICKNESS
Materials	Thickness(mm)	Cutting speed (m/min)	Auxiliary Gas	Air pressure (bar)
Carbon steel	0.5	50	Air	6
	0.8	28	Air	8
	1	23	Air	10
	2	6.5	O2	3.5
	3	3.5	O2	0.5-1
	4	2.3	O2	0.5
	5	1.8	O2	0.5
	6	1.4	O2	0.5
	8	1	O2	0.5
	10	0.8	O2	0.5
	12	0.65	O2	0.5
	14	0.6	O2	0.5
Stainless steel	0.5	50	N2	7
	0.8	33	N2	10
	1	25	N2	12
	2	8	N2	15
	3	2.8	N2	18
	4	1.2	N2	18
	5	0.8	N2	18
	6	0.45	N2	18
Stainless steel	0.5	55	Air	8
	0.8	38	Air	9
	1	28	Air	12
	2	8.5	Air	15
	3	3.3	Air	18
	4	1.35	Air	18
	5	0.9	Air	18
	6	0.5	Air	18
Aluminum	0.5	25	Air/N2	8
	0.8	18	Air/N2	9
	1	12	Air/N2	12
	2	3.5	Air/N2	18
	3	1.5	Air/N2	18
	4	0.8	Air/N2	17
Brass	0.5	30	N2	12
	0.8	17	N2	12
	1	12	N2	15
	2	3	N2	18
	3	1.3	N2	18
Copper	0.5	18	O2	12
	0.8	12	O2	12
	1	6	O2	12
	2	1.5	O2	15

laser drilling and hollowing 2mm stainless steel by 1kw
1~6mm elevator parts drilling and hollowing by 1kw
Technical Data

Working area	3000mm*1500mm
X axis travel distance	3030mm
Y axis travel distance	1520mm
Z axis travel distance	120mm
X /Y axis geometry positioning accuracy	≤ 0.05mm
X/Y axis repeat positioning accuracy	≤0.03mm
X/Y axis max. positioning speed	100m/min
X/Y axis max. acceleration	1G
Cutting line width	0.1mm-0.5mm
Cutting roughness	Ra3.2-25.4um
cutting capacity	0.5mm-14mm
Min. setting unit	0.001mm
Floor size	8800mm*3160mm
Main body dimension	8800mm*3160mm*2000mm
CNC system	CYPCUT
Dispaly	17"LCD
Worktable	Exchange worktable
Worktable max. Loading capacity	1000KG
Unit weight	8T
Overall installed electricity capacity	50KVA
phase	3
Rated Voltage	380V
Frequency	50Hz
Total power protecting level	1p54

Sales Market
Many manufacturers of Agricultural Machinery has imported laser equipment from Glorystar,such as Brazil,Poland,South Africa,Korea,Malaysia and Thailand.
Our Factory
After-sale Sevice
<<< We offer professional after-sales installation and guidance, after-sales online. we can be remotely controlled by teamviwer, to help customers solve the problem.
<<< For on-line not solve the problem, we will arrange technical personnel to the customer's company offer after-sales service
<<<Equipment warranty period of one year, optical lenses can not be maintained. Laser generator has 12months warranty, machine maintenance of life.
About Us
Dongguan Glory Star Laser Technology Co., LTD, Sino-German cooperation, focusing on laser technology & applications, after years of continuous innovation and development, has become a well-known large-scale manufacturer of laser equipment. The company owns office building, R&D Building, machining shop, painting and welding shop, assembling shop, modern showroom and standard industrial factory. The company's main products are metal laser cutting machines, non-metal laser cutting machines, laser marking machines,laser welding machines and bending machines. The annual production capacity of 8,000sets of products sold in more than 100 countries and regions. The company was identified as the national high-tech enterprise, and repeatedly won the technology Innovation Award. As a leader in laser equipment,Glorystar Laser technology Co.,Ltd has a complete R&D system, with many domestic famous universities and research institutions to maintain the close optical and technical cooperation, also is Nanyang institute of science and technology Graduate Trainee base. Products made EU CE certification and the SGS certification, and in all aspects of the incoming, process, machine, shipping and other compliance with ISO quality and environmental management system management guidelines to ensure that the national quality. Carrying the Global view sight, GLORYSTAR keeps on focusing the laser science and technology to share with you in the future successfully

---
