Eptfe Air Purification Membrane

Product Description

company introduction
Huzhou sen nuo fluorine material technology co., LTD. Is a company specializing in the production of bulk ptfe microporous membrane and the related composite products of high-tech enterprises, the company is located in northern zhejiang province, east of Shanghai Hangzhou in the south, the west according to the taihu lake in the north, and wuxi Suzhou on the other side of the lake, lake is the only ring taihu area because of the name of the city, the transportation is convenient.

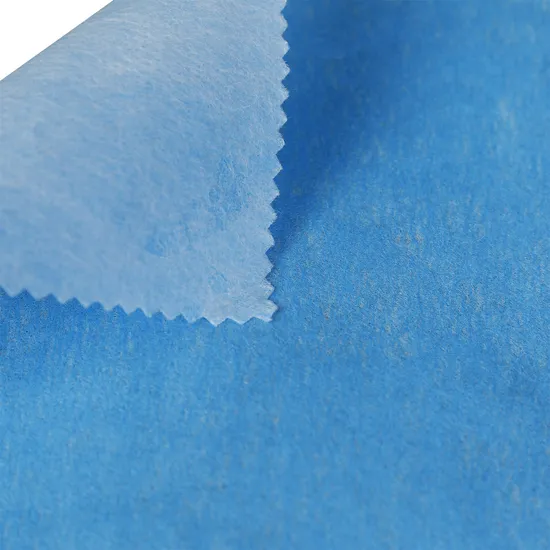

The ePTFE air filter membrane is made of PTFE resin, which is specially processed, biaxially stretched, and has a unique node fibrility, smooth surface, chemical resistance, airtight impermeability, large air permeability, flame retardancy and resistance. High temperature, strong acid and alkali resistance, non-toxic and other characteristics.The product which is made has high filtration efficiency, low running resistance, fast filtration speed, long service life and reusable, thus reducing operating costs.
Product Parameters

Type	Product Number	Width (mm)	Thickness (um)	Air Permeability(cfm)	Resistance(Pa)	Efficiency (%)	Length (m)
Air dusting membrane	SNCCM-110	1400-2600	2--3	110-130	70-90	98%↑	1000-2300
	SNCCM-120	1400-2600	3--5	120-150	60-70	98%↑	1000-2300
	SNCCM-150	1400-2600	2--3	150-180	50-60	98%↑	1000-2300
	SNCCM-250	1400-2600	2--3	250-280	30-40	90%↑	1000-2300
	SNCCM-70	1400-2600	3--5	70-90	120-130	99.9%↑	1000-2300
	SNCCM-60	1400-2600	5--8	60-80	120-140	99.95%↑	800-1300
	SNCCM-40	1400-2600	10-15	40-60	150-180	99.97%↑	500-800
Air purification membrane	SNKJM-25	1400-2600	2--3	250-280	25-35	90%↑	1000-2300
	SNKJM-45	1400-2600	2--3	150-180	45-60	99.5%↑	1000-2300
	SNKJM-35	1400-2600	2--3	200-220	35-40	99%↑	1000-2300
	SNKJM-70	1400-2600	5--8	110-130	70-90	99.97%↑	800-1300
	SNKJM-120	1400-2600	5--8	70-90	120-130	99.99%↑	800-1300
	SNKJM-150	1400-2600	8--10	50-70	150-170	99.999%↑	800-1300

Testing standards:
* Air permeability (ASTM D737 test differential pressure: 125PA)
* Resistance (EN1822-3:1998) Test conditions: air flow 32L/Min filtered wind speed 5.33cm/s)
* Efficiency (GB19083 EN134) test particle size (DOP): 0.1-0.3um
Our advantages
Q & A
1: Delivery Time
-Sample Order: 7-15days after receipt of the full payment.
-Stock Order: 7-15days after receipt of the full payment
-OEM Order: 15-300days after receipt of the deposit.
2 .Payment
T/T, Western Union, LC
3. Transportation
Transported by DHL, UPS, EMS, Fedex,Air freight. sea freight.

---
