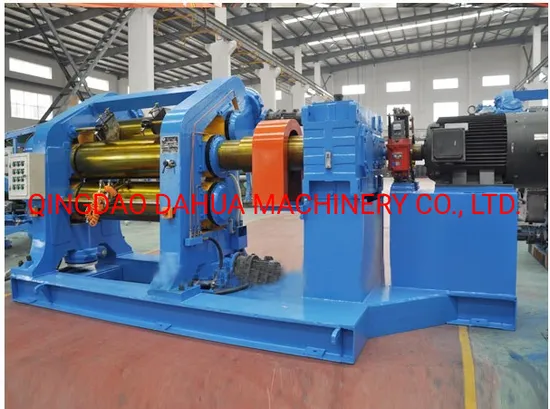

Three Roll Rubber Calender/Rubber Calender / Calender Machine (XY-3I 1500)

Product Description

36 MONTHS WARRANTY NEW Three roller calender machine with Oversea-Service
Usage:
The machine is mainly applied to put rubber on both sides of fabrics(cord fabric, canvas,etc.); to rubberize fabrics; to make rubber sheets; or to joint rubber sheets together
Main Parameter:

Model			XY-3I 630 XY-3L 630 XY-3Г630	XY-3I 1120A XY-3Г 1120A XY-3L 1120A	XY-3I 1400	XY-3I 1500	XY-3I 1730	XY-3I 2130	XY-3I 2430
Roll dia		mm	230	360	400	450	610	710	810
Roll working length		mm	630	1120	1400	1500	1730	2130	2430
Roll ratio			1:1:1 1:1.42:1	1:1:1 0.733:1:1 0.733:1:0.733	1:1:1 1:1.383:1.383 1:1.383:1	1:1:1 1:1.5:1	1:1:1 1:1.4:1	1:1:1	1:1:1 1:1.5:1
Middle-roll linear speed		r/min	0.8-8	3-21.06	3-26.39	2.62-26.2	5.4-54	8-50	2-20
Adjusting nip range		mm	0-7	0-10	0-10	0-6	0-20	0-20	0.5-25
Min.Calendering product thickness		mm	0.2	0.2	0.2	0.2	0.15	0.15	0.5
Calendering product width		mm	100-500	500-920	1200	1400	1500	1900	2150
Motor power		kW	7.5	45	55	75	132	185	220
Overall dimensions	L	mm	3168	5550	6500	7420	7010	7650	9300
	H	mm	890	1640	1500	2200	3950	4560	3150
	W	mm	1830	2120	2440	2900	3730	4080	5200
About weight		t	~2.6	~11	~22	~26	~52	~67	~94

Main parts instruction:
Body
Body frame and basement: Welded into shape, after annealing, overall processed through precise machine tool, high rigidity, not easy becoming deformed, smooth, wear-resisting. Rolls and Bearing Group
(1) Roll Structure:hollow smooth rolls
(2) Material: chilled cast iron
(3) Hardness:68-72HS
(4) Cold Harden Layer:10-25mm
(5) Main Bearing: cylindrical roller bearings (Wafangdian Metallurgy Bearing)
(6)Bearing bush adopts cast iron (FC30), made from tempering handling. Excellent intensity and precision, together with lubrication oil holes. The bearing seats are made of aluminum with labyrinth ring oil seals to keep from oil leaking of inside and outside.
(7)Rolls nip has max. nip protecting function.
(8)Rolls temperature adjusting adopts high quality revolving joint and stainless metal pipe
Nip Adjustment Device
(1) Adjusting Speed:3.6mm/min
(2) Motor Driving Power:1.5KW
Reducer
(1)Type:one motor input, one pc shaft output.
(2)Gears: Hard gear surface, closed oil immersed harden gear surface reducer. Noise≤78dB,safety factor:SA≥2.
Main Motor
Main motor adopts inverter motor, through frequency converter adjusting motor rotating speed.
Emergency braking equipment
(1)Mode: Electro-hydraulic block brake.
(2) Brake Capability: After braking roller skating for ≤ 1/4 circumference.
(3)4 emergency stop buttons in the left and right, front and back of the machine, foot brake to ensure safty operation
Electrical control group
(1)Control cabinet: Surface paint floor type.
(2)Operating Box: Operation control circuit.

Packing & Shipment:
About Dahua :
Qingdao Dahua Machinery Co.,Ltd. which was established in 2000 is affiliated to Shandong Rubber Machinery Research Institute.We specialize in scientific research,production and sales of Rubber Machinery.As keeping extensive close cooperation with Qingdao University of science and technology,Shandong University,China University of petroleum,Chinese Academy of Sciences we have made a great contribution to the development of China Rubber Machinery.
The company has experienced technical team,earnestly the grass-roots staff.We have advanced CNC machines and a variety of large and small mechanical processing equipment,heat treatment equipment and sophisticated detection equipment and introduced advanced UG 3D mechanical design software and performance optimization software in 2006. Our design team can design and manufacture non-standard rubber machinery according to customer requirements.
"Quality first, technology innovation" is the company's business principle,our products were rated as "excellent provincial famous brand" ,"free products" and exported to many countries and regions such as United States,Germany,France,Canada,Australia,South America and so on.With excellent quality and good customer service, the products have been well received among domestic and foreign customers!
We sincerely welcome customers all over the world to visit our company or call us to have a business negotiation, hope to make a good faith and win-win cooperation with you and common development hand in hand.
Customer Show:
Hot Sales:
FAQ:
Q: Are you manufacturer or trade company?
A: We are really 100% manufacturer.
Q: How many year's experience does your company have?
A: More than 20 years of concentration, we mastered several key technologies.
Q: What product can you supply?
A: Rubber press machine, Vacuum molding press machine, Injection Molding machine, Rubber mixer machine, calender machine, extruder machine and rubber product equipment solvtions.
Q: What are the operating modes of the machine?
A: With manual and semi-automatic operation mode.
Q: What control system does the machine use?
A: We use PLC as the core of control system, we ususlly usee Omron PLC.
Q: How long is the warranty of your machinery?
A: Our warranty is one year.
Q: How long is the delivery time?
A: Usually we need 40-60 days , if ther id inventory , we can finish the modification within one month, but it may take longer if ther are special requiements
.

---
