| US$1.00-6,000.00 | 1 Piece (MOQ) |
| B-Scan | |
| Display Mode: | B, B+B, B+A, A |
| Probe Frequency: | 10MHz |
| Scanning Method: | Mechanical sector scan |
| Resolution: | axial≤0.2mm, lateral≤0.4mm |
| Gain: | 0- 98dB adjustable |
| Zoom: | 34mm - 60mm, 6 steps selectable |
| TGC: | -30dB - 0dB dynamic, 6 Points manually adjustable |
| Variable Delay Depth: | 0-15 mm |
| Post Processing: | 4 groups of curves (Linear, Logarithmic, Exponential, S-curve) Distance & Area Measurement |
| Dynamic Replay: | for 5.6 sec 56 images displayed continually or separately |
| Probe Hibernation: | over 10 minutes |
| Gray Scale: | 256 levels |
| A-Scan | |
| Probe: 10MHz with Fixation Red Light | |
| Resolution: | 0.01mm |
| Biometry Accuracy: | ≤±0.06mm |
| Gain: | ≥98dB with an adjustable range of 0-55dB |
| Measuring Range: | 15-39mm |
| Measuring Parameters: | Anterior Chamber Depth, Lens Thickness, Vitreous Length and Axial Length |
| Measuring Method: | Immersion and Contact |
| 5 Different Measuring Modes: | Automatic (for Normal, Dense Cataract, Aphakic and Special); Manual |
| Calculation of 8 groups' average with Standard Deviation (S.D) | |
| IOL Formula: | SRK-T, SRK-II. BINKHOST- II. HOLLADAY, HOFFER-Q and HAIGIS |
| Save up to 50 groups of results and 4 groups of IOL constants | |
| Standard Configuration | |

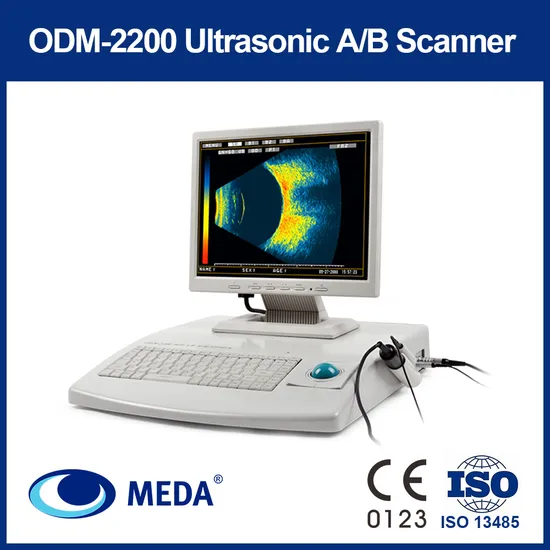

| ODM-2200 Ultrasonic A/B Scanner | |
| 10MHz B Probe | |
| 10MHz A Probe | |
| Foot Switch | |
| Test Object | |
| Other | |
| Power Supply: | AC 100-240V, 50/60Hz |
| Weight: | 6Kg Without LCD Screen |
| Dimension: | 460 x 420 x 80 mm |
