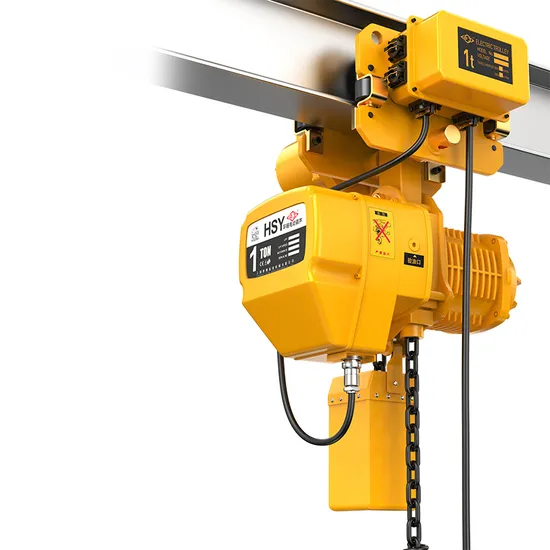

220V 380V 440V Wireless Remote Control Electric Material Lift Crane

Product Description

220V 380V 440V Wireless Remote Control Electric Material Lift Crane
Specification for the electric chain hoist HSY

Product parameters
Model HSY	Capacity TON	Lifting Height M	Lifting Speed M/MIN	Lifting motor					Drive motor
				Power KW	Rotational Speed R/MIN	Ph ase	Voltage V	Frequency HZ/S	Power KW	Rotational Speed R/MIN	Running speed M/MIN	Ph ase	Voltage V	Frequency HZ/S
01-01	1	3/9	6.8	1.5	1440	3	380/220	50/60	0.4	1440	11/21	3	380/220	50/60
02-02	2	3/9	3.4	1.5	1440	3	380/220	50/60	0.4	1440	11/21	3	380/220	50/60
2.5-01	2.5	3/9	6.8	3.0	1440	3	380/220	50/60	0.75	1440	11/21	3	380/220	50/60
03-02	3	3/9	5.8	3.0	1440	3	380/220	50/60	0.75	1440	11/21	3	380/220	50/60
05-02	5	3/9	2.8	3.0	1440	3	380/220	50/60	0.75	1440	11/21	3	380/220	50/60

Features for the electric chain hoist HSY
1. Hooks
Drop forged steel suspension & load hooks are heat treated and fracture resistant. In case of dangerous overloading or abuse, the hook does not fracture but will slowly yield.
2. Power
Operating voltage 220-440V, 50/60Hz, 1-3 phase.
Low voltage control 36V is standard.
3. Motor
High efficient energy-saving motor, asbestos free brake system. 2-speed motor available.
4. Chain
Alloy steel chain super strong surface hardened for optimum strength and wear resistance.
5. Chain Bucket
Solid chain bucket as standard part for safer operation
6. Limit Switch
Limit switch devices fitted at both top & bottom ends, switch off power automatically to prevent load chain from running out.
7. Phase Error Relay
Phase error relay, a specially designed current-post, prevents motor from running at incorrect wire connection.
8. Pushbutton Swith
Pushbutton swith is rain-proof plastic for severe impact and corrosive atmosphere resistance and mechanically interlocked.
9. Safety Latches
Top and bottom hooks are fitted with safety latches as standard.
10. Light Wight
Light weight, compact and solid body case.
11. Push Button Control
Our Services

Service
Payment term:	T/T or L/C
Warranty Period:	1 year
Delivery time:	5 days after order
Packing:	export carton and pallet

---
