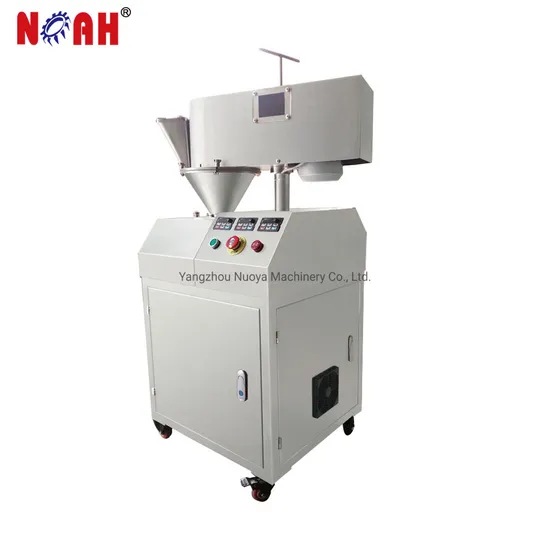

LG100 Fully Automatic Customized Dry Type Granulator

Product Description

LG100 Fully Automatic Customized Dry Type Granulator
Applications:
The Dry Granulation Machine is a new equipment for making powder into granuler.
It is suitable for use in the pharmaceutical, chemical, food and other industries, using the crystallization water of the raw material itself to directly dry and extrude into particles.
Reasonable in structure, stable and reliable in performance.
convenient in cleaning and maintenance.
It has a new structure to dependable and easy to repairing.
This machine can be used for processing tablet, drinking granule, filling capsule, etc..
Main application:
1. Medicine: granule for pressed disk, granule for filling capsule and so on;
2. Foodstuff: granule for foodstuff making, granule for flavoring;
3. Plastic: shaped granule of all kinds of plastic;
4. Chemical industry: granule of catalyst, pigment, detergent and other chemical raw materials.

Model	LG25	LG-50	LG-100
Roller size(mm)	Φ80×25	Φ150×50	Φ200×100
Output(kg/h)	1~5	10~40	30~100
Roller speed(rpm)	0~18	0~33	0~33
Screw speed(rpm)	0-60
Granulating speed(rpm)	0~600	0~377	0~268
Fineness(mm)	0.3~1.5	0.3~1.5	0.3~1.5
Roller Pressure(MPa)	0~7	0~7	0~7
Total power(KW)	2.63	5.62	11.15
Dimension(mm)	750×650×1350	1020×800×700	1500×1050×2050
Weight(kg)	200	1000	2500

---
