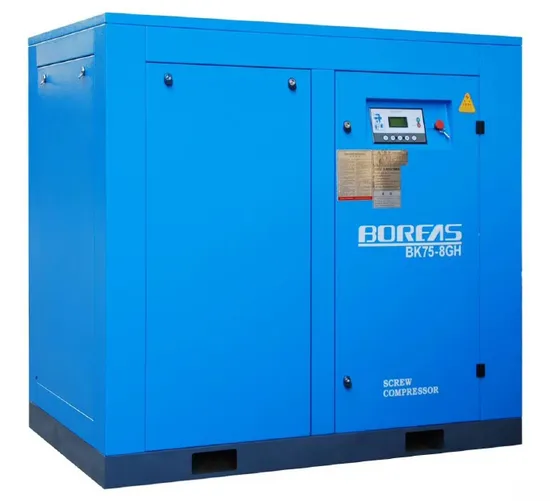

Good Quality Bk75-8gh 55kw 75kw Central Pneumatic Electronic Industrial Screw Air Compressor

Product Description

Humanized man-machine interface display control system
• The operation is particularly convenient and simple, and the running status is clear at a glance.
• Can work for you 24 hours a day under unattended conditions.
• Once abnormal factors appear, maintenance or overhaul will be prompted in Chinese.
• Reserve output interface, which can realize chain control and remote diagnosis control of multiple units.
• Economical and easy to maintain, suitable for low-power hosts.
Low consumption and high efficiency motor
• High starting torque.
• Insulation class F, protection class IP23.
•Built-in refueling device, can refuel without stopping.
Efficient intake control valve
• NO/OFF control method.
• Anti-injection design with check valve.
Product Parameters

Screw group	5: 6 Gear rotor
Compression method	Continuous, single stage
Compressed air outlet pressure	0.8MPa
Compressed air outlet temperature	Air-cooled
Compressed air outlet temperature	10ºC~15ºC higher than the ambient temperature
Volume of Lubricating Oil	About 30liters
Motor speed	N=2970r/min
Rated power	75kw
Air capacity	V=13m3/min
Weight	1200kg
Upper air temperature	45ºC
Lower limit of air temperature	0ºC
Fuel consumption	Exhaust oil content is less than 3PPM
Noise level	80dB(A)
Dimensions (length×width×height) (mm)	1800x1190x1710

Detailed Photos
Built-in oil separation system The built-in oil separation design ensures the separation of oil and gas and reduces fuel consumption.
Certified Genuine Parts. Kaishan Certified Genuine Parts to ensure the compressors delivered to you always perform at high performance.
Adhering to the basic belief in environmental sustainability, we have been committed to continuously improving the energy efficiency of our products and creating value for users.
Energy saving and economical, reliable and durable, environmentally friendly and quiet.
The Latest-Generation High Efficiency Screw Rotor."Large Rotor, Low Speed", Direct Drive. The latest generation of high-efficiency rotor profiles, full-spectrum screw mainframe meets the national energy-saving standards.
Specification

Model	Exhaust pressure (Mpa)	Exhaust volume (m³/min)	Motor power (KW)	Exhaust connection	Weight (kg)	Dimension (mm)
BK7.5-8G	0.8	1.20	7.5	G3/4	200	800x620x800
BK7.5G-8	0.8	1.10	7.5	G3/4	200	880x510x800
BK11-8G	0.8	1.70	11	G1	280	1000x670x1090
BK15-8G	0.8	2.40	15	G1	280	1000x670x1090
BK15-8	0.8	2.40	15	G1	270	700x670x1250
BK15-10	1.0	2.20	15	G1	270	700x670x1250
BK15-13	1.3	1.70	15	G1	270	700x670x1250
BK22-8G	0.8	3.45	22	G1	390	1200x800x1120
BK22-10G	1.0	3.20	22	G1	390	1200x800x1120
BK22-13G	1.3	2.70	22	G1	390	1200x800x1120
BK30-8G	0.8	5.00	30	G1½	470	1340x850x1330
BK30-10G	1.0	4.40	30	G1½	470	1340x850x1330
BK30-13G	1.3	3.60	30	G1½	470	1340x850x1330
BK37-8G	0.8	6.00	37	G1½	560	1340x850x1330
BK37-10G	1.0	5.40	37	G1½	560	1340x850x1330
BK37-13G	1.3	4.60	37	G1½	560	1340x850x1330
BK45-8G	0.8	7.10	45	G1½	720	1480x1030x1340
BK45-10G	1.0	6.20	45	G1½	720	1480x1030x1340
BK45-13G	1.3	5.60	45	G1½	720	1480x1030x1340
BK55-8G	0.8	10.00	55	G1½	790	1480x1030x1340
BK55-10G	1.0	7.20	55	G1½	790	1480x1030x1340
BK55-13G	1.3	6.20	55	G1½	790	1480x1030x1340
BK75-8	0.8	13.00	75	G2	1200	1800x1190x1710
BK90-8	0.8	16.00	90	G2	1240	1800x1190x1710
BK110T-8	0.8	21.00	110	DN65	1630	2100x1230x1730
BK110-8	0.8	21.00	110	DN65	1680	2100x1230x1730
BK132T-8	0.8	24.00	132	DN65	1670	2100x1230x1730
BK132-8	0.8	24.00	132	DN65	1750	2100x1230x1730

Why Choose Us
Kaishan group is a state-level large scale enterprise headquartered in Quzhou, Zhejiang province, China. Over the last sixty years Kaishan Group has grown to become a significant diversified engineering company developing high value machinery for industry worldwide. Kaishan group is the largest rock drill manufacturer in the world, and the largest air compressor manufacturer in China. Exports are shipped to over 25 countries .Today we produce over 30 000 rotary screw and 250 000 reciprocating compressors annually.By the year of 2014 our sales amount was close to RMB 2 billion. Kaishan group also has the high-quality customer service system.
Our company is the authorized agent of Kaishan Group, specializing in air compressor, energy-saving transformation service and mining engineering construction machinery. We provide comprehensive technical support and after-sales service to customers.

Advanced Equipment--Advanced equipment guarantees product quality. Over the years, we have received unanimous praise from overseas users for our integrity and high-quality product quality.
Packaging
The air compressor is guaranteed for one year. In addition to wearing parts and consumables, if the spare parts within the warranty period are broken, the company provides free spare parts replacement, but the buyer needs to pay the freight. Please ask customer service for specific warranty rules.
