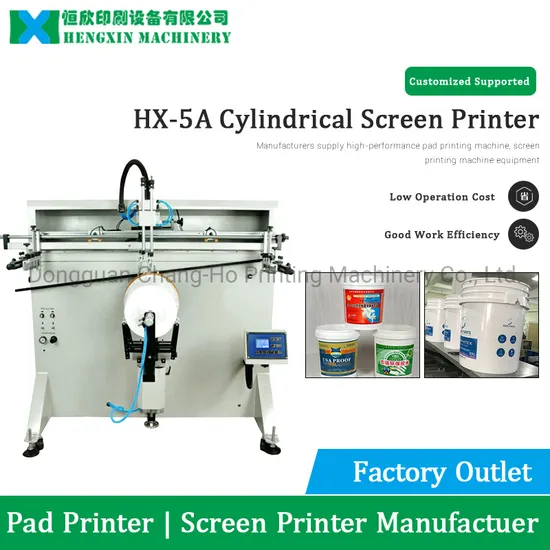

Silk Screen Printing Machine for Printing on Paint Bucket

Product Description

Silk Screen Printing Machine for Printing on Paint Bucket
Technical Parameter:

Specification | Model	HX-2A	HX-3A	HX-4A	HX-5A
Transverse Stroke	300MM	400MM	600MM	1200MM
Vertical Stroke	100MM	100MM	100MM	100MM
Flat | Round Function	Flat & Round	Flat & Round	Round	Round
Max Printable Diameter	150MM	150MM	220MM	350MM
Print 360 Degree Diameter	90MM	120MM	180MM	350MM
Max Printable Length	300MM	300MM	300MM	400MM
Machine Speed	800 Cycles / Hr	800 Cycles / Hr	600 Cycles / Hr	500 Cycles / Hr
Transverse Driven	Common Cylinder	Rodless Cylinder	Rodless Cylinder	Rodless Cylinder
Vertical Driven	Pneumatic	Pneumatic	Pneumatic	Pneumatic
Vacuum Fuction	With Vacuum Device	With Vacuum Device	With Vacuum Device	With Vacuum Device
Power Supply	220V	220V	220V	220V
Air Supply	5 ~ 7 Bar	5 ~ 7 Bar	5 ~ 7 Bar	5 ~ 7 Bar
Machine Dimension	900*800*1200MM	950*800*1250MM	1050*850*1280MM	1900*900*1500MM
Machine Weight	100 KG	110 KG	120 KG	250 KG

---
