Product Description
Product Description

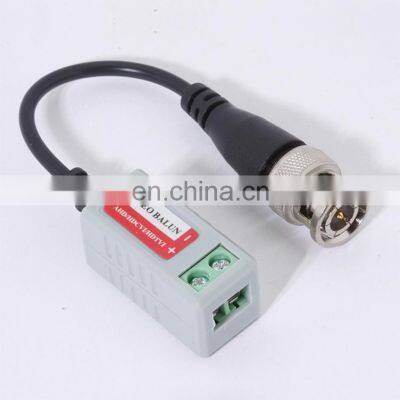

CCTV Accessories Passive HD Video Balum For AHD /CVI /TVI Product DescriptionFeatures: Compatible with AHD/CVI/TVI singal Transmission signal:720P/1080P Cable:CAT 5/5E/6 Transmission distance to 300M to CVI/AHD,200M for TVINo power required Builit-in surge & transient protection Super interference rejection Specifications: ITEMSPECIFICATIONPhysical ProperitesDimension (L*W*H)13.7mm*11.6mm*3mmShellABSColorBlackN.W.60GStabilityMTBF>10000hEnvironmentalOperating Temperature-10-55°CStorage Temperature-20-70°CHumidity0-95% (non-condensing)PropertiesTransimission signal1 channelTransimission distanceAHD/CVI:300m(max)TVI:200m(max)Category TypeUTP CAT5/5E/6Video transmission properties and portCoaxial video connectorBNC-MTwisted-pair video connectorPush-terminalCompatible FormatAHD/HDCVI/HDTVIResolution720P/1080PAnti-interference>60dBProtectionESD1a contact discharge electricity level 31b air discharge electricity level 3Per: IEC61000-4-2Coaxial cable connector2KV(common-code),4KV(common-code),Per:IEC1000-4-5UTP Cable connector2KV(different-code),4KV(common-code),Per:IEC1000-4-5ImpedanceBNC male75OhmsUTP Cable connector100Ohms Send inquiry Click here for quote and more information>>>Similar ProductsPackagingOur clientFAQQ1:Are you a trading company or manufacture?A1:YUXUN cable is a professional manufacturer since 1996, so we can provide perfect solution on cables and can control the quality from the first procedure to the last. Q2:What is your delivery time?A2:Normally,our delivery time is 15-20days after get your deposit. . Q3:What is your MOQ?A3:Usally,the MOQ of our general coaxial cable product is 15-20KM,but every inquiry will be considered individually. Q4:What is your general payment term?A4: Normally, our payment term is 30% deposit by TT when order confirmed, and 70% balanced payment by TT or LC at sight before delivery. Q5: Can you produce the specfic cable strictly according to clients' requirement?A5: Yes, we have professional technical team, so we can do ODM for customers. Q6: Where you are located?A6: We located in the city of ZHUHAI, quite near to HK/Macao/Shenzhen/Guangzhou. If you intersting in our cables, pls send the enquiry now!!!Free sample will be deliveried to your address soon!!Contact us
>>
