Potato Ring/ Stick/ Flat Direct Extruder and Frying Processing Line

Product Description

Company profile
Handyware Engineering was established in 2003 and has a factory of 4,600 square meters at Foshan city. We design and develop for food snacks processing lines. Our mission is to fabricate processing lines that are easy to operate, high efficiency, low operaton cost and high product quanlity for our customers. we strive to continously innovate, regularly brining new creative products to our custormers.
Hope our high quality products with competitive price can help broaden your market together.
If have any inquiries or comments, please feel free to ask me. We would be glad to talk in details with you.
China Manufacturer Potato Rings Processing Line
Introduction
Potato rings chip processing line applies advanced extrusion technology together with medical grade mixing and indirect heating, to manufacture chic, unique and popular rings potato chips.

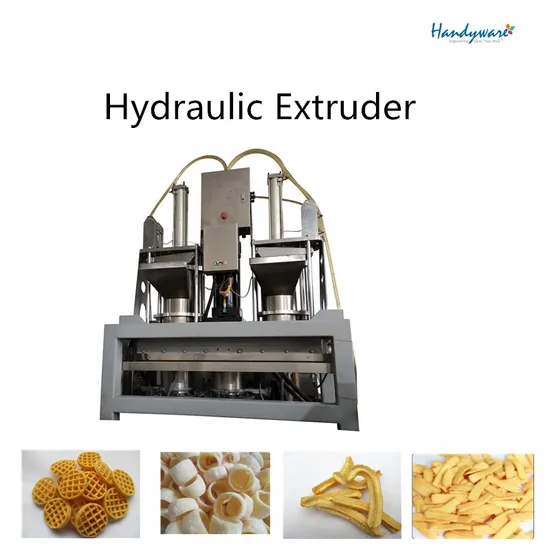

This line mainly consists of 3 parts, mixing part, extrusion part and frying part. Mixing part contains two different types of mixer, with medical grade, hygienic and high quality, can mix uniformly different powder mixiture, extremely coffee powder. Extrusion part has the hydraulic extruder that applies oil extrusion and gas operated technology. Frying part has the continuous fryer, which provides non-direct heating, prevent product over fried, maintains cooking oil temperature, reduces oil wastage. This line also equips with a metal detection conveyor belt, to remove metal residue.
It is very easy to manage, with 7 persons needed, mainly deployed to control electric cabinets, also, maintenance is pretty easy, just using gas guns and wet cloth, except when dealing with oil filtering.
Processing line
Technical information

Potato rings chip processing line
Dimensions(L*W*H)			1710mm * 500mm * 450mm
Total power			40KW
Electricity requirement			380V/220V 50Hz/60Hz 3phase
Production load			200kg/h
Suitable for			Potato lattice, hexagon/rectangle/triangle chips
Material			SS304
Compressed air supply			0.6-0.8Mpa
*Diesel Fuel			15-30kg/h
*Natural Gas			16-32 cubic meter per hour
*LPG			10-13 cubic meter per hour
Energy in heat exchanger			500,000kcal/hour
Place of origin			Foshan
Port			Guangzhou
Operating mode			Automatic

Before Frying After Frying
Our strength Excellent End Product
• Precise control of temperature and oil flow result in superior chips with uniform color and consistent finished moisture content
• Hydraulic extruder used to extrude chips of high quality shapes.Besides rings, other shapes such as sticks, wave sticks, net design and many others can be achieved
Prevent Over-cooking
• Non-direct heating reduces oilrancidity
• Heat exchanger used to maintain desired cooking oil temperature
Cleaner Oil
• Low oil volume and rapid oil turnover assure fresh product with along shelf life. Optimal oil level is automatically maintained
• Circulating oil keeps fines in suspension for efficient removal.100% of the system oil volume passes through a filter to removeproduct particles for the highest oil and product quality.
Oil Cost Saving
• No oil discharge required if run continuously
High Speed Mixer
• High speed homogenous mixer uniformly mix various raw material
Easy tocontrol
• Central control panel to manage process parameters
Top Quality
• Manufactured using high quality stainless steel (304)

---
