2023 New Function 3 in 1 China 1500W 2000W 3000W Handheld Fiber Laser Welding Cleaning Machine for Metal Stainless Steel Carbon Steel Aluminum

Product Description

OVER 18 YEARS MANUFACTURING EXPERIENCE!!!
1kw-3kw laser welding machine hot selling
Product Description

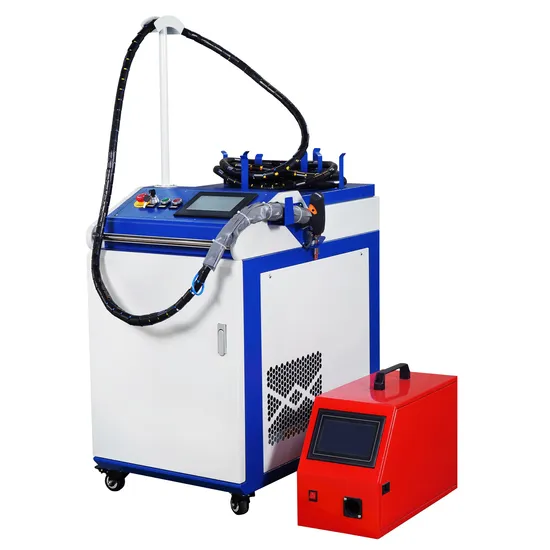

HANDHELD FIBER LASER WELDING MACHINE
The handheld fiber laser welder been worked to help you weld several metal sheet, such as stainless steel, aluminum alloy sheet, carbon steel sheet etc.and it has the cleaning&cutting optional function for you choose.
Integrated design, laser, water chiller and control part are integrated together, occupying a smaller area, low requirements for the site; welding torch transmission fiber cable can be equipped with 10 meters, 15 meters, 20 meters, breaking through the limitations of the worktable, can reach a wider welding range, suitable for all kinds of complex welding seams, can weld any part of the workpiece and the desired angle.
Product Parameters

Model	GS-HW1500	GS-HW2000	GS-HW3000
Laser power source	1500w	2000w	3000w
Fiber length	10m/15m	10m/15m	10m/15m
Optical fiber core diameter	50um	50um	50um
Fiber wavelength	1080nm	1080nm	1080nm
Red light signal	0.5mw	0.5mw	0.5mw
Welding thickness of iron	4-6mm	5-8mm	8-10mm
Welding thickness of stainless steel	4-6mm	5-8mm	8-10mm
Welding thickness if aluminum	2-3mm	3-4mm	4-8mm
Voltage/frequency	AC220V 50HZ/1P	AC220V 50HZ/1P	AC380V 50HZ/3P
The engine power	7.2KW	12KW	15KW
Weight	210KGS	230KGS	260KGS
Size(cm)	L120*W60*170	L120*W60*170	L130*W68*180
Welding head	SUP21T	SUP21T	SUP21T/SUP23T
Output head interface	QBH	QBH	QBH
Output power range	<2%	<2%	<2%
Operation mode	CW/Modulate	CW/Modulate	CW/Modulate
Type of cooling	water cooling	water cooling	water cooling
Operating temperature	<70ºC	<70ºC	<70ºC

Machine parts details

SUP21T WELDING HEAD Constant laser mode, smooth welding seam, no fish scales, strong and firm welding seam;
Small heat affected area, small yellowing and blackening areas on both sides of welding seam, small overall deformation of workpiece; Small pile height of welding seam, no need to proceed secondary sanding treatment.
It has 8 types nozzles, meet your different welding request.
Simple operation no need training
English operation interface, the working status is clear status; the operation panel is concise and easy to understand. The monitor support contact touch, expands the tolerance range of the machined parts and the width of the weld, which solves the disadvantage of small spot size and better weld formation. With multiple safety alarms, it automatically locks light after removing the workpiece, which is safe.
Compare to others machine 1.Product material advantage: the chiller and water pump: cooling capacity is 18L
2. Advantages of the circuit: The relays are all famous brand, the strong and weak currents on the circuit are
separated, the AirTAC brand on the gas line, 99% of the factories will not use the flow alarm valve, in order to reduce the cost,but we use it, in order to improve lifetime of the welding gun.
3. Strong and weak electricity 220v and 15v are separated: to prevent interference and protect the circuit board from being burned(to prevent abnormal parameters and wrong laser light output)
Sample Display
Project
It can be widely used in cabinets, kitchen, staircase elevator, shelf, oven, stainless steel door and window guardrail, distribution box, stainless steel home and other industries complex and irregular welding procedures.
Packaging & Shipping
Company Profile

FAQ
1.Q:Why should you choose us?
A: We have about 20years laser equipment experience.We start to focus on CNC laser equipment since 2004.
Mainly focus on fiber laser cutting/welding machine and cutting/welding robot etc. Welcome to visit us.
2.Q: I'm not familiar with the machine?
A:You just need to tell us materials, working size and thickness, I'll recommend you the right machine.
3.Q:How to operate the machine?
A:We will deliver English manual and video with the machine to you, If you still need our help, we have the professional technical engineers for training.
4.Q:What can we do if something wrong with the machine within the warranty period?
A:The free parts will be provided if the problems with the machine not caused by any wrong operation of operators. We also provide lifetime repairing for the machines after warranty date.
5.Q:How can get the sample to check your quality?
A:If you want to marking sample to check the quality, we can help you do this.First you need to provide the logo or design to us, free mark samples can be provided.
6.Q:Do the machine can be customized according my requirements ?
A:Sure, we have a strong technical team and rich experience. Our goal is to make you satisfied.
7.Q:Can you arrange the shipment for me?
A:We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, EXW etc.

---
