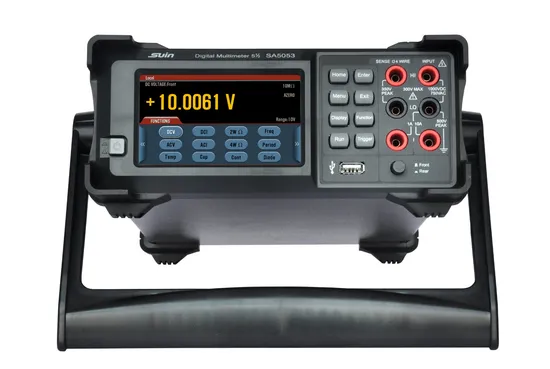

SA5053 Benchtop Digital Multimeter with 4.3 Inch LCD Touch Screen

Product Description

Features:
*True 5 ½ digits
*1 μV resolution
*Full measurement functions to meet user's test need
*Double display voltage and frequency synchronously
*4.3 inch LCD capacitive touch screen to display bar chart, histogram and trend chart
Specifications:

	5 ½ digits
Basic Function	Range
DC Voltage	100mV/1V/10V/100V/1000V
AC Voltage	100mV/1V/10V/100V/750V
DC Current	100uA/1mA/10mA/100mA/1A/10A
AC Current	100uA/1mA/10mA/100mA/1A/10A
Resistance	100Ω/1KΩ/10KΩ/100KΩ/
	1000KΩ/10MΩ/100MΩ
Capacitance	1nF/ 10nF/ 100nF/1uF/10uF/100uF
Frequency	20Hz-1MHz
Temperature	-200 ~ 800ºC
Features
Reading Rate	500 reading/s
Auto Range	√
Diode	√
Continuity	√
Null	√
Trigger	√
Save/Read	√
Math	MAX/MIN,Null,dB, dBm, MX+B,%,Limit,Statistic
General Characteristics
Safety	IEC61010-1: 2001, CAT I 1000V/CAT II 600V, Class of pollution: 2
Interface	USB Host, USB Device,RS-232,LAN, GBIP (optional)
Power	110 V/220 V (1±10%), 50 Hz/60 Hz, 15 VA
Dimension & Weight	260х106х375 mm, 2.6 kg

Product showcase
Company Profile SUIN Instruments Co., Ltd is a high-tech company and concentrates on R&D, production, test, sales and service of test & measurement instruments, electrical products, application software, etc. It already won below titles depending on the super technical advantage: High-tech Enterprises in Hebei Province, Hebei Industrial Design Center, Hebei Academician Workstation, Shijiazhuang Industrial Design Center, Engineering Research Center of Shijiazhuang electrical test instrument, Shijiazhuang Enterprise Technical Center, China's Key Enterprises in electronics instruments industry.

Suin is located in Luquan optical valley park, provincial capital Shijiazhuang of Hebei in China and covers an area of 12,000 square meters. Because of good base, test equipments and SMT production line to develop digital electronic instruments, the yearly capacity can reach to 30,000 sets in total. Also, Suin built modern training base covering area of 2000 square meter and up to 300 people could be accommodated at the same time to carry out the theoretical study and practical operation.

Suin major product includes Signal Generator, DMM, Spectrum Analyzer, Frequency Counter, Power Quality Analyzer, Dual Mixer Time Difference System, Programmable DC Power Supply, etc., which are sold well both in domestic and oversea market.

---
