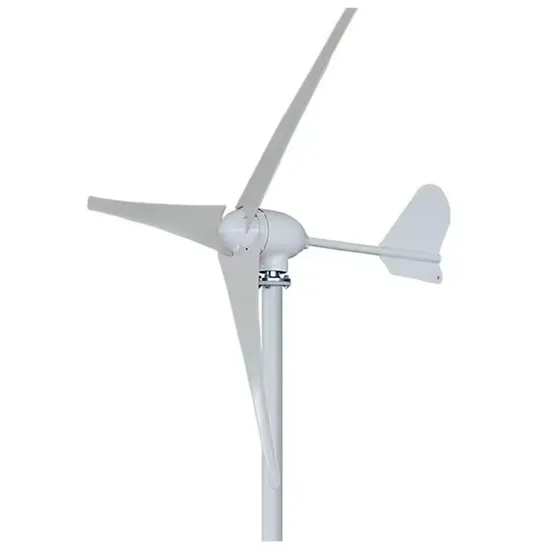

Horizontal Axis Small 400W 500W 600W Wind Generator 800W Solar 1kw Wind Turbine

Product Description

Product Description
Our horizontal wind turbine have wind alignment devices that can rotate as the wind direction changes. For small horizontal wind generators, this type of wind alignment device uses a tail rudder, while for large wind turbines, a transmission device composed of wind direction sensing elements and servo motors is used.Product Parameters

Model	ES-M3-500	ES-M5-800	ES-M6-1000
Rated power	500w	800w	1000w
Rated voltage	12V/24V/48V	24V/48V/96V	24V/48V/96V
Start the wind speed	2m/s	2m/s	2m/s
Rated wind speed	10m/s	12m/s	12m/s
Safe wind speed	≤45m/s	≤50m/s	≤50m/s
Blade diameter(m)	1.65	2	2.1
Number of blades	3	3	3
Blade material	Reinforced nylon fiber
Fuselage material	Reinforced die-cast aluminum
Magnetic steel material	NdFeB
Generator type	Three-phase AC permanent magnet synchronous generator
Control mode	Electromagnetic brakes
Control mode	Automatically adjusts the windward angle
Service life Degree of protection	≥ 20 years IP54
Net weight(kg)	14/16kg	26/28kg	28/30kg
Packing size(mm)	930*400*215mm	1150*400*300mm	1150*400*300mm

Detailed Photos
Horizontal axis small 400w 500w 600w wind generator 800w solar 1kw wind turbine The tail rudder of horizontal wind generator adopts automatic windward and automatic yaw design, usually of straight or folded tail type, with strong typhoon resistance and safe and reliable operation. The 1kw wind turbine uses a patented permanent magnet rotor AC generator. The special stator and rotor design can effectively reduce the resistance torque of the generator. Optional maximum power tracking intelligent controller, effectively regulating current and voltage. Our Project
