Product Details
Product Description
Product Description

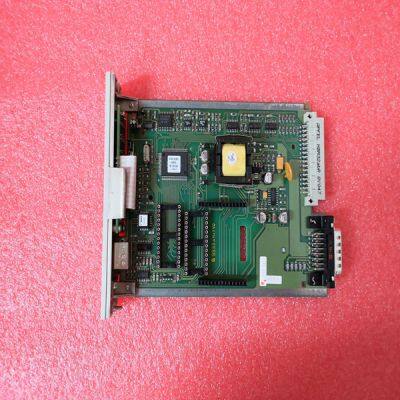

Brand:HONEYWELL
Type:05701-A-0361
Origin: the United States
Warranty: 365 days
Colour: new/used
Shipping method: Courier delivery
Spare parts spare parts, the main DCS control system of PLC system and the robot system spare parts,
Brand advantage: Allen Bradley, BentlyNevada, ABB, Emerson Ovation, Honeywell DCS, Rockwell ICS Triplex, FOXBORO, Schneider PLC, GE Fanuc, Motorola, HIMA, TRICONEX, Prosoft etc. Various kinds of imported industrial parts
For technical data on PM866 and TP830, see Table 62 on page 264. Table 62. PM866 and TP830 – Technical data Item Value Memory • 4 MB flash PROM (firmware storage). • 64 MB of SDRAM. Power Dissipation 5.1 W typical 8.6 W typical (incl. full supply to ModuleBus and CEXBus. For details, refer to 3BSE036351R, AC 800M - Controller Hardware, Hardware and Operation). Current Consumption 210 mA typical (360 mA max.) (excl. supply of ModuleBus and CEX-Bus. For details, refer to 3BSE036351R, AC 800M - Controller Hardware, Hardware and Operation). Power Input Connector Four pin, screw connector L+, L–, SA and SB. Power Supply Requirements Inputs designated L+ and L– 24 V nominal, variation between 19.2 V DC and 30 V DC. Redundant Power Supply Status Inputs Inputs designated SA, SB • Max input voltage 30 V • Min. input voltage for high level 15 V • Max input voltage for low level 8 V These inputs are status inputs. The threshold levels are logical "0" or "1" input limits, not power fail limits. Power Reservoir The processor unit has an internal 5ms power reservoir, sufficient for the CPU to make a controlled power down. Protection Rating IP20 according to EN60529, IEC 529.
Communication Ports and Interfaces For details on Technical data for communication ports and interfaces, For details, refer to 3BSE036351R, AC 800M - Controller Hardware, Hardware and Operation. Battery The memory content is backed up with either an internal or external battery unit (SB821 or SB822). For backup time see Table 63 on page 265. For internal and external battery data, refer 3BSE036351R, AC 800M - Controller Hardware, Hardware and Operation. Weight • 1200 g (2.6 lb) (package PM866K01). • 2800 g (6.1 lb) (package PM866K02). Dimensions W 119 x H 186 x D 135 mm (4.7 x 7.3 x 5.3 in) Width is measured along the DIN-rail, depth from the wall, and height vertically, including lock mechanism. The figures in Table 63 on page 265 are valid if the batteries have been installed after a normal CPU power-up, allowing for the memory backup function to be activated. Table 63. Back-up time for PM866 Source Back-up time for PM866 Internal battery Minimum 158 hours External battery SB821 Minimum 15 weeks External battery SB822 Note: Recharge time for an empty battery is approximately 7 hours.
>>
