| Sliding extrusion upvc profile |
| Company information Our lumei construction material company are always still produce upvc profiles and finished pvc windows for many years. we have 14 production lines to produce upvc profiles, and have whole machine to make finished windows doors. four head wleding machien , cutting machine etc. Our product mainly have 60mm/65mm/70mm casement series profiles;60mm/80mm/88mm/104mm sliding series profiles. products color: wooden laminated film , white color,milk white/blue white color, black,gray colors with ASA technology. All of our products are 100% lead free material and ensured by CE/RoHS/ISO 9001 certification |
| Multi-Functional The top half of the door moves independently from the bottom as well as functioning as whole. | Low Thresholds Low uPVC and aluminium threshold options, and wheelchair access are available with all our stable doors | Double Drip Bars To prevent water ingress, double drip bars are fitted to both sashes as standard for superior weather tightness. |
| Versatile Ventilation Our stable doors also come with an additional tilt facility which provides flexible operation. | Stay Warm Our stable doors feature Liniar`s revolutionary 6 chambered uPVC profile for superior thermal efficiency. | High Security Our uPVC stable doors come with high security locks as standard. |
| Products Advantages: Good Quality Best Price UPVC Window Profile: (1)Good Water Sealing Property for extruded pvc plastic profile With rain-proof plate, and grooves and poles water drainage, doors and windows can isolate rain to outdoors completely. (2)Aging Resisting about extruded pvc plastic profile Adopting imported improver, and with ultraviolet-radiation-proof absorbent, plastic doors and windows remain the same color and without aging under burning sun, heavy rain, dryness, and wetness from minus 30 degrees to 70 degrees. (3)Fire Proof Property about extruded pvc plastic profile The plastic does not self-ignite, not support combustion, and can self-extinguish. (4)Air-tightness There are sealed strips on the gaps of joints, which can save energy. (5)Easy Maintained The PVC profiles will not be influenced by dust, cement, and agglutinant, etc. They can be cleaned by any cleaning agents. (6)All pvc profiles are 100% lead free materials certified by CE/RoHS/ISO9001. (7)Lumei upvc profile have special products have been added, and a sufficient amount of UV absorbers, titanium dioxide, has been added to achieve anti-aging, anti-oxidation and anti-ultraviolet effects. (8)Lumei upvc profile The multi-cavity design structure prevents the heat from being dissipated too quickly, thereby making the heat preservation performance good, and the upvc material is not easy to be burned due to the addition of the flame retardant material. |

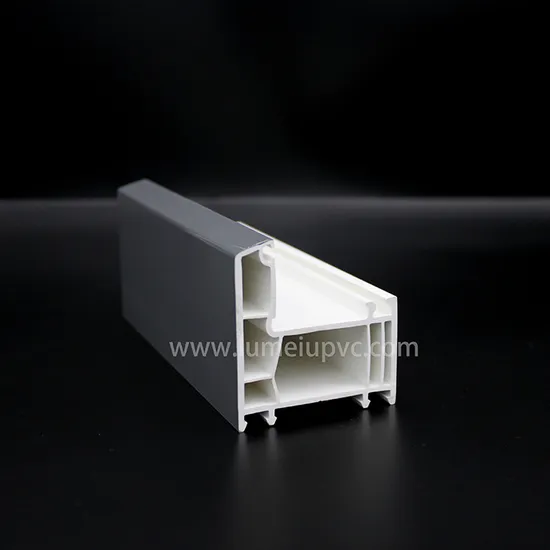

| Sliding pvc profile section for sliding windows doors,60mm sliding two track profiles for windows and doors production procress.laminated window door need to prepare materials and accessories! Sliding pvc profile section for sliding windows doors.60mm 80mm/88mm sliding series profiles 60mm series are two tracks sliding profiles;80mm/88mm/104mm are three tracks sliding profiles! Mutit colors for your choice! white/gray/black/green/wood lamianted for you! all kinds of colors for your choice! How to make uPVC Door? uPVC Stable Doors |
| No | Testing them | Technical requirement | Testing result |
| 1 | Status after 150ºC heating | No bubbles,cracks and pitting | passed |
| 2 | Vicat softening temperature(B50)ºC | ≥75 | 81.0 |
| 3 | Bending modulus of elasticity(Mpa) | ≥2200 | 2.39*103 |
| 4 | Tensile-impact strength(KJ/M2) | ≥600 | 652 |
| 5 | Charpy notched impact strength | ≥20 | 21.8 |
| 6 | Welding angle mean stress | ≥35 | 47.1 |
| 7 | Welding angle min.stress | ≥30 | 42.1 |
| 8 | Water tightness | 250-350 | Passed |
| 8 | transmittance | K=1.0w/(m2.k) | passed |
| 9 | Air permeability | 1.0≥q1≥0.5 3.0≥q2≥1.5 | passed |
| 10 | acoustics | Rw+Ctr=31dB | passed |
| 11 | Window frame welding strength | ≥3500N | Passed |
| 12 | Window sash welding strength | ≥4000N | Passed |
| The test laboratory is equipped with the following instruments: UTM - for tensile and weld strength testing and compressive strength. Impact Tester - For contour strength. Drop Quality Tester Zero Freezer Unit: Find contour breaks at low temperatures. Hot blast stove: Look for properties of thermal stability and shrinkage. Density tester: Find the density of the outline. Filler Content Test: Find the filler content that determines the quality of the UPVC compound. Vicat softening temperature test: test the thermal properties of the profile. Hardness tester: find the hardness (rigidity) of the profile Spectro photo meter: Find color changes in the profile. Gloss meter: Find the surface finish. |
| Products paymet& packaging&loading A. T/T & L/C B. Within 15 days after receiving 50% deposit of T/T C.Plastic bags as customers' requirements D.Samples can be provided freely to test our products quality E.The usual container : 20GP ( can load 8-11 tons ,the delivery time about 7-10 days) 40 HQ(can load 24-26 tons,the delivery time about 10-15 days) The hardwares/accessies also supply If you have any requirements tell me right now, waiting for you anytime pulley/half moon lock/hinge/handle/door lock/ sash pulley |
| If you have any needs of these products welcome to contact us! |
