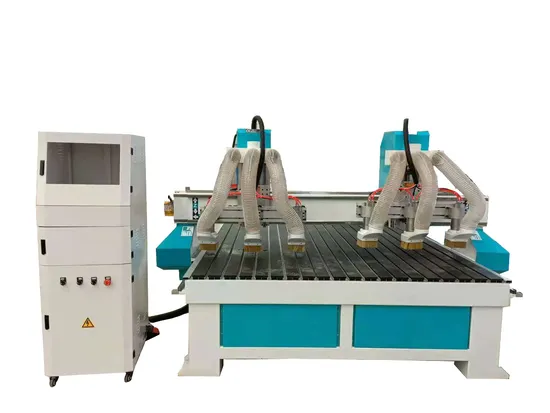

Factory Price Fast Processing Multi Heads 1325-4 Wood CNC Router Machine/Woodworking Engraving Machine for Sale

Product Description

CNC Router New Model Wood working Machine Product Description
Product Description
Main features of USM1325 wood cnc router machine
1. Thick steel tube heavy duty frame and gantry, avoid vibration and ensure the machine working performance.
2. Taiwan square linear guide rail, longer working life.
3. Oblique tooth gear rack, improve the machine working speed.
4. DSP control system, don't need to connect with pc or laptop when control the machine working.
5. electrical parts, including switch button, contactor, relay, etc, confirm the machine steady and safe.
Product Parameters
Specifications of SM1325 wood cnc router machine

Machine model	USM1325 cnc router machine
Structure	steel tube welded
X Y Z axis travel	1300x2500x200 mm
Feeding height	200 mm
Spindle	4.5kw air cooled (water cooled, HQD or bigger power for optional)
Drive motor	easy servo motor drive (hybrid)
Working table	T-slot workatble/Vacuum Table
Guide rail	Taiwan square linear guide
Transmission	X/Y axis - obilque tooth gear rack, Z axis - ball screw
Positioning precision	0.01mm
Control system	RichAuto DSP
Dust collector	with double bags
Tool sensor	included
Lubrication	included
Working voltage	AC380V +/- 15%, 50/60Hz (AC220V for optional)
Options	1) pure servo motor drive
	2) 4th axis
	3) control system like Mach3, Ncstudio, etc.

Detailed Photos
HQD Air cooling spindle No need to install water pump, easy to operate
RichAuto DSPA 11 Control system DSP control system don't need connect to PC.It included three parts, control card, U disk,and handle Controller. DSP is easily operate and learned, especially for the freshman.
Leadshine Stepper motor and driver Won't lose step when it work,guarantee the positional accuracy of the motor.
Rail Guide The cost can be effectively controlled by using the HIWIN guide rail. The HIWIN guide rail has a small friction coefficient, which can effectively reduce power consumption during use. HIWIN rail design is simple, strong rigidity, can be perfect for optical fiber cutting machine.
Oil Injection System Automatic oil injection system, timed and quantitative automatic oil injection to avoid oil cut-off.
Dust Collector Effectively inhales dust such as wood chips and dust generated during the production process to keep the working area clean.
Tool Instrument Automatically determine the distance from the tip to the workpiece, improve accuracy and save time

Application
Application of USM1325 cnc router
Stepmores 1325 cnc router is not only suitable for wood, mdf, acrylic processing, it is also very suitable for soft metal cutting, such as aluminum composite panel, aluminum sheet, copper, etc., this type play an important role in the advertising industry.
1. Furniture industry: solidwood doors, composite doors, cabinet doors, interior doors, sofa legs, headboards, antique furniture and superficial flower-shaped engraving of various plate-type furniture and disposable finishing of process.
2. Decorated industry: variety of decorations engraving process such as decorative murals, screens, decorative patterns, three-dimensional wave boards, sound-absorbing panels and so on.
3. Advertising industry: engraving and making for acrylic cutting and engraving, acrylic plastic model making, badges and a variety of logo signs.
4. Arts & crafts industry: sculpture making of arts & crafts such as process relief, shadow carving, craft ornaments, car accessories and so on.
5. Musical instrument industry: headstock processing ,guitar semi-finished products processing, surface sculpture and three-dimensional curved surface making of various musical instruments' decorative patterns.

Sample Photos
Packaging
Firstly, we use stretch film to package the machine in order to keep the machine clean and avoid shaking during shipment.
Secondly, we use plywood case to package outside, which doesn't need to be fumigated or heat treated
Finally, we use steel tube under the plywood case, which can protect the package from damage during loading / unloading.

Shipping
1. Delivery time: 15~20 business days after payment
2. Delivery way: by sea / train, or as agreed
Certifications

Customer Feedback
After Sales Service

1. service before sales: our sales will communicate with you to know your requirements about the cnc router specification and what kind of work you will do, then we will offer our best solution for you. So that it can confirm each customer get their real needed machine.
2. service during production: we will send photos during manufacturing, so customers can know more details about the procession of making their machines and give their suggestions.
3. service before shipping: we will take photos and confirm with customers the specifications of their orders to avoid the mistake of wrong making machines.
4. service after shipping: we will write to customers in time when the machine departs, so customers can make enough preparation for the machine.
5. service after arrival: we will confirm with customers if machine is in good condition, and see if there is any spare part missing.
6. service of teaching: there are some manual and videos about how to use machine. If some customers have further question about it, we have professional technician to help install and teach how to use through Skype, calling, video, mail or remote control, etc.
7. service of warranty: we offer 12 month warranty for whole machine. If any fault of the machine parts within warranty period, we will replace it for free.
8. service in long-term: we hope every customer can use our machine easily and enjoy using it. If customers have any problems of machine in 3 or more years, please contact us freely.

Company Profile

Jinan Unistar machinery co., Ltd was established in 2012. We are well known for our superior quality and service in the field of engeering and manufacturing of CNC equipment that includes atc cnc router, wood cnc router, 4axis cnc router, 5axis cnc router, cnc plasma cutting machine, which have passed CE, SGS certificate.
Our company has sold machines to a lot of countries such as US, EU, Argentina, Morocco, UK, Australia, Russia, Romania, France, Esthonia, and so on.

For more details or if you need recommendation, please contact us!

Thanks!Best Regards!

---
