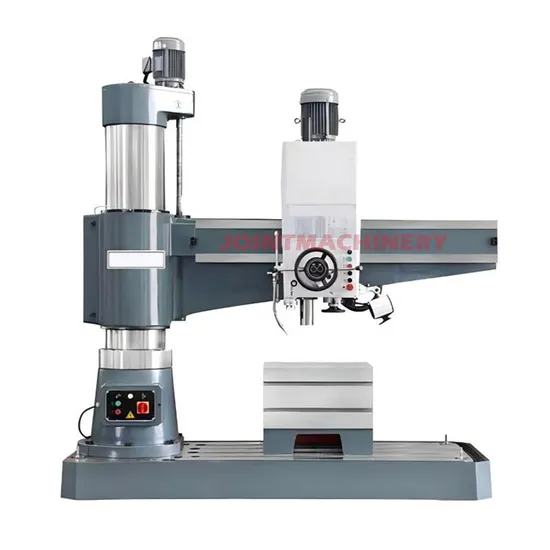

High Quality Hydraulic Automatic Radial Arm Drilling Machine Hc-1200

Product Description

Product Description

High rigidity, heavy drilling, double slideway design, stable operation
√ Strong drilling ability, Mehanna tough cast iron, high temperature tempering, rigid and tough.
√ The gear is made of alloy steel, by quenching and carburizing heat treatment.
√ The spindle is made of chrome-molybdenum diamond, outstanding durability.

	Spindle Box Fixed range machining, spindle forward and reverse rotation, speed change, neutral and other actions are all controlled by a handle. ∨		Worktable The worktable has undergone aging treatment, making is sturdy and stable for a long time of use. ∨
∧ High Frequency Quenching Column The columns are all high-frequence quenched, with strong rigidity and high surface finish.		∧ Spindle The spindle is made of chrome-molybdnum diamond, outstanding durability.

Strong Drilling Ability HC-1200 Radial Drilling Machine for Metal Radial Drilling Machine Tool

Model		HC-1200
Distance between spindle center and column center	Max	1200
	Min	260
Distance between spindle nose to base	Max	1200
	Min	300
Diameter of spindle	E	270
Height of column	F	2055
Max distance between spindle head to base	G	2400
Floor space	HXI	1850*850
Longitudinal travel of spindle head	K	840
Up and down travel of radial ram	L	680
Up and down travel of spindle	M	220
Spindle hole	MT	NO.4
Size of worktable	mm	1160*750
Motor of spindle	kw	2.25(3HP)*4P
Elevator motor of radial ram	kw	0.75(1HP)*4P
Motor for clamping	kw	-
Spindle feed range	mm/rev	0.06-0.20
	Grade	3
Spindle rotation	60HZ rpm	88-1500
	50HZ rpm	72-1243
	Grade	6
Working capacity	Drilling	42
	Tapping (S45C)	24
Net weight	kg	1750
Gross weight	kg	1930
Dimension	mm	2050*950*2350

Shenzhen Joint Machinery Co., Ltd. Is a professional manufacturer and exporter of CNC lathe machine, CNC deep hole drilling machines, and Swiss-type automatic lathes, milling machine, grinding machine, etc. We are committed to providing high-quality machines and excellent service to our global customers. We prioritize the control and improvement of machine quality to ensure that our products meet the highest industry standards. Our machines incorporate core technologies from Taiwan and Germany, combined with state-of-the-art production equipment and processes, to deliver superior product quality and reliability. Our machines are known for their outstanding performance in terms of precision, stability, and dependability, capable of meeting various complex and high-demand machining requirements. Our products are exported to countries worldwide and have gained wide recognition and popularity among customers. Our market presence covers Asia, Europe, South America, North America, and more. We have established long-term partnerships with customers from various countries and regions, creating significant business value together.

---
