Full Automatic 4 Cavity Pet Stretch Blow Molding Machine 5 Liter

Product Description

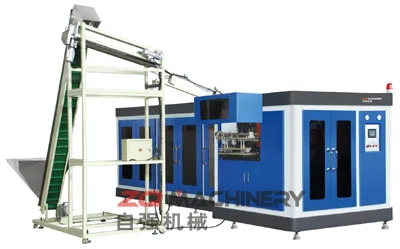

Full automatic 4 cavity PET stretch blow molding machine 5 liter
5 liter PET bottle machine
ZQ-B5000-4 is a two step fully automatic blow moulding machine specially designed for 5 liter edible oil bottle
Production, best choice for productions with big volume, high speed and full automation. It has 4 cavities with up to 5 liters for each cavity, suitable as welll for other bottles above 2 liters, like carbonated drinks, low-middle tempeprature juice beverage, mineral water and pestcide, etc.
Full automatic 4 cavity PET stretch blow molding machine 5 liter,Advantages
1). High Automatization
2). High Intelligence: The machine can be controlled through touch screen and running status is shown on it.
3). High Quanlity: Steady infrared heating system blowing and highly precise blow-mould closing system ensure quality.
4). High Speed: 2800-3500BPH(4-cavity).
5). No Contamination: Closed production zone, good self-lubrication system avoid contamination.
6). Low Cost: Low consumption of electricity, air and water.
7). High Transparency: Easy maintenance, absolute safely, visual inspection, low noise.
Full automatic 4 cavity PET stretch blow molding machine 5 liter,equipment information.

TYPE	ITEM	ZQ-B5000-3	ZQ-B5000-4
CONTAINER	Number of cavity	3cavities	4cavities
	Output	1500-1800 pcs/hr	2000-2200 pcs/hr
	Max.container volume	5L	5L
	Max.neck diameter	45-80mm	45-80mm
	Max.container diameter	180mm	180mm
	Max.container height	350mm	350mm
ELECTRICAL SYSTEM	Number of lamp	44pcs	60pcs
	Max.heating power	66kw	60kw
	Installation power	85kw	100kw
	Actual power consumption	35kw	36kw
AIR SYSTEM	Operatating pressure	7-9kg/cm²	7-9kg/cm²
	Low pressure consuming	2000Ltr/min	2600Ltr/min
	Blowing pressure	25-35kg/cm²	25-35kg/cm²
	High pressure consuming	3500-4000 Ltr/min	4500-5000 Ltr/min
CHILLER WATER	Operating pressure	5-6 kg/cm²	5-6 kg/cm²
	Temperatuer	10ºC	10ºC
	Consuming	5500kcal/hr	6600kcal/hr
	Flow rater	35Ltr/min	45Ltr/min
MACHINE	Machine dimension	4.7x2.25x2.25(m)	5.6x2.1x2.1(m)
	Machine weight	4.5ton	5.5ton

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.

---
