Woodworking Block Board Planning Wide Belt Planer Sander Machine

Product Description

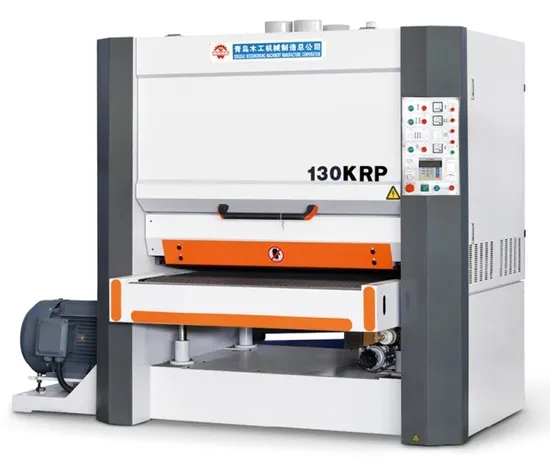

wide belt planer sander machine
Product Application
(1) It is suitable for calibrating and fine sanding laminate lumber, composite board, particle board, solid wood, panel furniture, bamboo floor, wood door and etc. It is one of the necessary equipment for integrated wood and furniture manufacturing.
(2) The pressing roller protects device to keep the board on the feeding table, which keep the operators safe.

Standard installation:
(1). Sanding belt automatic centering.
(2). Pneumatic sanding pad (RP model)
(3). Schneider Electrical component
(4). Brush roller cleaning the panel after sanding
(5). Pressure shoes guarantee feeding work pieces stably
(6). Japanese NSK internal bearing reduce vibration of belt
(7). Photoelectric control equipment which control vibrating of abrasive belt along center.
(8). Automatic air blower on sanding belt to prolong the life time of sanding belt
Description

Model	BSG130KRP
Width of sanded panel	40-1300mm
Thickness of sanded panel	3-120mm
Speed of planing roller	30m/s
Speed of abrasive belt on 2nd unit	18m/s
Speed of abrasive belt on 3rd unit	12m/s
Feeding speed	6-30m/min
Size of abrasive belt	1330×2500mm
Diameter of planer	Φ180mm
Power of planing roller	22kw
Power of abrasive belt on 2nd unit	22kw
Power of abrasive belt on 3rd unit	15kw
Conveyor motor power	4Kw
Lifting motor power	0.25Kw
Brush motor power	0.37Kw
Working pressure	0.55MPa
Compressed air consumption	0.2m3/h
Pressure relief device required	>13000m3/h
Speed required for cleaning equipment	25-30m/s
Dimensions	3000*2090*2300mm
N.W.	6500kg
Voltage	380V 50Hz 3Ph

Details Image
Packing&Delivery
Packaging:The normal package is PLASTIC FILM also we can packing with your requirements
Delivery:About 30 days after receive the down payment delivery
Our company&factory
FAQ
What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.
Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Panel Saw, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, CE certificate
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao sea port

---
