| US$670.00-900.00 | 1 set (MOQ) |

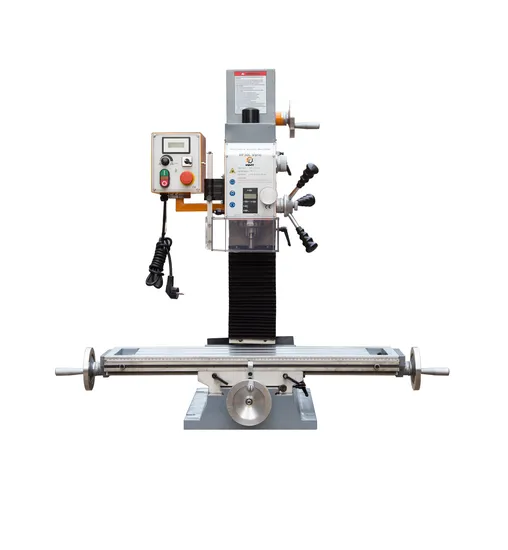

| Specification | ZAY7016V |
| Drilling capacity | 16mm |
| Max. face mill capacity | 50mm |
| Max. end mill capacity | 16mm |
| Max. distance spindle to table | 220mm |
| Working table size | 500 x 140mm |
| Spindle rotary angle | ± 45° |
| Spindle taper | MT2/M10 |
| Spindle speed | 50-2250rpm |
| Sleeve stroke | 50mm |
| X-axis travel | 320mm |
| Y-axis travel | 140mm |
| Z-axis travel | 220mm |
| Motor power | 600w |
| N.W/G.W | 70/90kgs |
| Packing size (LxWxH) | 520x450x760mm |
