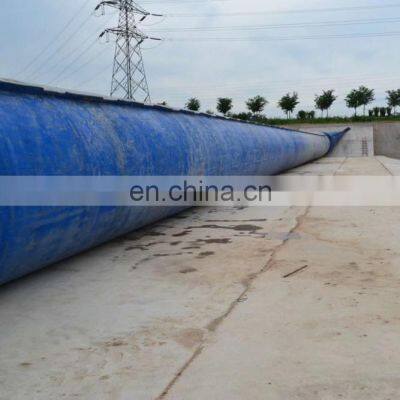

customized Inflatable Rubber River Water Dam /Rubber Inflatable waterproof dam

Product Description

Product Description
Product Description
Details Images
Feature
Water retaining: By inflating the airbag, it supports the water shield shield to achieve water storage.
Water supply: When the water storage height exceeds the height of the water shield, the water flows through the shield, and the
airbag and support system are protected by the shield under the shield without receiving damage.
Dam height adjustment: Adjust the height and angle of the water shield by adjusting the air volume to control the height of the
water surface.
Drainage: By venting the air in the airbag, the water shield and airbag can lie at the bottom of the riverbed, and the support
Specification
Dam model number
Design of high dam
internal pressure ratio
Dam Radial calculated strength
Dam perimeter of section
Dam length
Dam
thicikness
 safety factor
LY-1.0
1.0
1.00
5.00 kn/m
3.48m
0.60m
8mm
36.00
LY-1.5
1.5
1.00
11.28 kn/m
5.23m
0.90m
8mm
20.00
LY-2.0
2.0
1.00
20.00 kn/m
 6.97m
1.20m
10mm
13.50
LY-2.5
2.5
1.00
31.26 kn/m
8.71 m
1.51m
10mm
11.52
LY-3.0
3.0
0.90
40.6 kn/m
10.57m
1.93m
12mm
11.12
LY-3.5
3.5
0.80
49.00 kn/m
12.58 m
2.41m
12mm
10.10
LY-4
4
0.80
64.00 kn/m
14.36 m
2.77m
14mm
12.65
