Product Description
Product Description

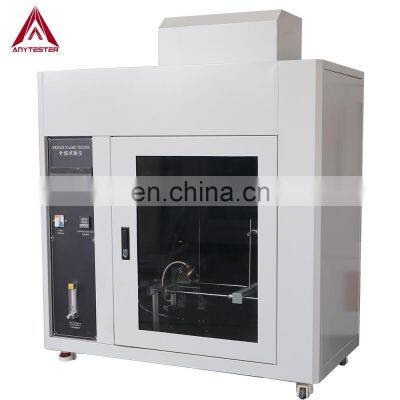

Product DescriptionAT803 Needle Flame Tester uses a specified size (Φ0.9mm) needle burner with specified gas (butane or propane) ignites the specimen by specified angle (45°) and time. Observe if the specimen and layer is ignited or burning time and burning length to determine the fire risk of small flame caused by equipment fault conditions.StandardBS EN ISO 6941EN71-2UL 1694IEC60695-11-5, 60695-2-2GB/T 5169.5, 4706.1Technical Specification AT810Needle burnerinner dia.: Φ 0.5 ± 0.1mm, outer dia. ≤Φ 0.9mm, Length ≥35mmBurner angleVertical or 45°Flame height12mm ± 1mmGas flame temperature gradient100 ° C ± 5 ° C to 700 ° C ± 3 ° C (room temperature to 999 ° C)Test space≥ 0.5m3Ignition time1s～999.9sTemperature SensorK type Φ 0.5mm insulated armored galvanicDimensions1120mm ×520mm ×1020mmVent holes sizeΦ 100mmPower supply220V, 50HzWeight120kgDetails & Features * Using digital instrument control system, import control components; * Fixture made of high quality stainless steel, corrosion-resistant, no rust; * Tempered glass observation window, the entire test process can be observed Technical Specification: * Touch Screen Control, easy to operate * One-button time device, to facilitate the use of equipment; * Advanced temperature control and temperature measurement system, so that the test more accurate, the results more reliable;Our CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productCertificationsPacking & DeliveryPackagingSize(cm)116(L) * 60 (W) * 131 (D)Weight260 KgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance before shipmentCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time30~40 days after receiving payment for one containerRelated Products
>>
