Good Price Plastic Automobile Bumper Making Injection Molding Machine for Car Parts

Product Description

Full automatic car plastic spare body parts making injection molding machine
Product Description

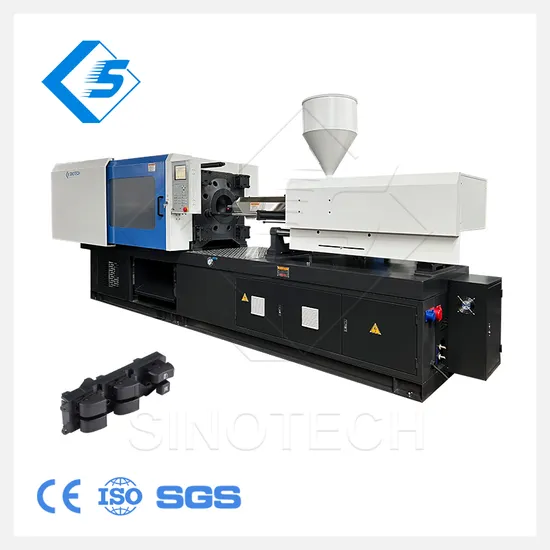

SINO-TECH ST-480A injection molding machine is designed for plastic dustbin, chairs, car bump pallet etc. It is with demoulding linkage which shorten the plastic parts cycle time. ST-480A with high speed, stable performance and it is energy-saving. Our customers can get higher production with same labor and cost.
Main Features1. 30% higher energy saving than using traditional variable pump.
2. Stable and smooth movement supported by AC servo motor.
3.Effective reduction of energy consumption due to reduced oil.and cooling water attained by hydraulic system.
4. High performance European B&R control system.
We are professional plastic injection molding machine manufacturer for all kinds of plastic products, Clamping force from 50 to 4000Ton, injection weight from 50 to 10000g. Also we have CE and ISO certification.
Product Parameters

ITEM	UNIT	ST-480A
INJECTION UNIT
SCREW DIAMETER	mm	70	75	80
SCREW L/D RATIO	L/D	22.6	21	19.7
THEORETICAL SHOT VOLUME	cm³	1346	1545	1785
SHOT WEIGHT99(PS)	g	1225	1406	1600
INJECTION PRESSURE	Mpa	201	175	154
THEORETICAINIECTION RATE(PS)	G/s	370	423	484
PLASTICISING CAPACITY	G/s	6.04	71.4	83.7
SCREW TORQUE	N.m	3490
MAX.SCREW ROTATE SPEED	R/min	150
INJECTION STROKE	mm	350
CLAMPING UNIT
MAX.CLAMPING FORCE	KN	480
MAX.OPENING STROKE	mm	770
SPACE BETWEEN TIE BARS	mm	760*760
MOULD HEIGHT	mm	280-790
MAX DAYLIGHT	mm	1560
EJECTOR FORCE	KN	113.4
EJECTOR STROKE	mm	195
EJECTOR QUANTITY		13
OTHER
PUMP MOTOR POWER	KW	45
PUMP PRESSURE	MPa	16
HEATING POWER	KW	28
HEATING ZONE		5
SIZE	m	7.5*2.1*2.45
NET WEIGHT	t	20
OIL TANK CAPACITY	L	850
INTERNATIONAL DESIGNATION		4800-2710

Seller Recommendation

Detailed Photos

Company Profile

FAQ
1. who are we?We are based in Jiangsu, China, start from 2011,sell to North America(30.00%),South America(20.00%),Western Europe(16.00%),Oceania(10.00%),Mid East(10.00%),Eastern Europe(5.00%),Southeast Asia(5.00%),Africa(4.00%). There are total about 5-10 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Extrusion Blow Molding Machine,Pet Blow Molding Machine,IBC Cage Production Line,Plastic Extrusion Line,Waste Plastic Recycling And Pelletizing Line4. why should you buy from us not from other suppliers?Our company have the strict system from the material purchase,machine part processing and inspect. We have the detailed Assemble prcess according to the machine Assemble structure. We test not one time before the machine delivery to the customer factory.5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
