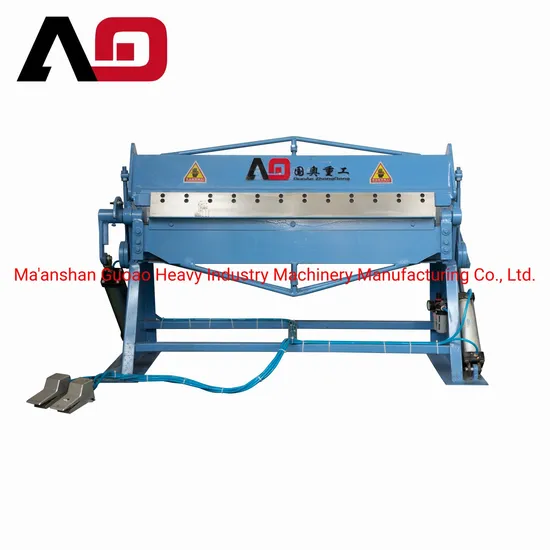

Guoao Circular Pipe Ventilation HAVC Duct Pneumatic Metal Folding Machine

Product Description

Performance Features:
Taking 4-cylinder pneumatic system as power source, two cylinders are used for bending when the other
two are used for pressing. Working stably without power makes the machine an efficient ideal equipment,
and our company can customize general type according to the customer requirements.
Main Technical Parameters:

Model	Max sheet thickness (mm)	Max sheet width (mm)	Minimum folding angle	Weight (kg)	Dimension L*W*H (mm)
QTDF-1.5*1300	1.5	1300	60°	380	2000*820*1100
QTDF-1.5*2000	1.5	2000	60°	500	2655*820*1100
QTDF-1.5*2500	1.5	2500	60°	600	3200*820*1100

Structure
1. air cylinder
2. top beam
3. mold
4. bottom beam
5. gas valve
6. foot pedal switch
Workshop
Packing & Loading

---
